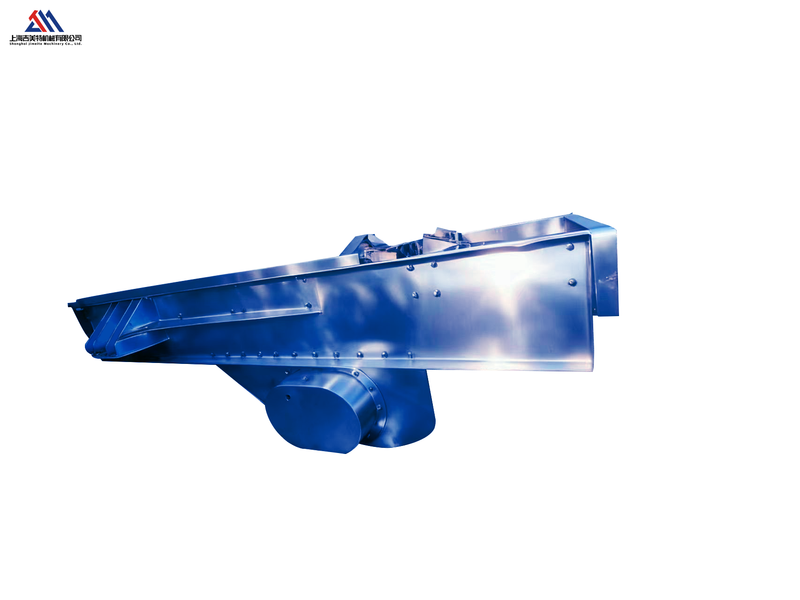

3896 Feeder - Heavy-duty material handling for demanding applications
The 3896 feeder is an industrial-grade vibrating feeder with robust performance in the most challenging mining, aggregate, and bulk material handling operations. This heavy-duty feeder has an expansion plate size of 3800mm x 9600mm and is designed to handle large volumes of continuous feeding of large and heavy bulk materials to primary crushers, screens, and conveying systems. Its outstanding strength and advanced vibration technology ensure reliable and controlled material flow, maximizing the efficiency and productivity of the entire processing plant.
Main Features and Advantages
· High capacity, controllable feeding: The large feeding hopper and powerful vibration mechanism enable the processing of extremely high tonnage rates. This ensures a consistent, stable and controlled flow of materials to downstream equipment, eliminating bottlenecks and optimizing overall plant throughput.
· Super heavy-duty construction: The 3896 is designed to withstand the huge impact of large, heavy materials such as mine ores and large quarry rocks, featuring reinforced deck plates, sturdy side liners, and a structural steel frame. This structure guarantees excellent durability and a long service life even under the harshest conditions.
· Reliable vibration drive system: Equipped with high-performance, counter-rotating vibrator motors, this feeder generates a linear and powerful stroke, effectively pushing the materials. This robust drive system is designed for minimal maintenance and ensures reliable start-up and operation, even with head loads and sticky materials.
Adjustable feeding speed: The feeding speed can be precisely controlled via a variable frequency drive (VFD), allowing the operator to easily match the feeding speed with the capacity of downstream crushers or screens. This optimization prevents overloading and ensures peak processing efficiency.
· Grizzly section option: The feeder can be equipped with an integrated grizzly section at the discharge end to bypass fines before the main crusher. This increases the effective capacity of the crusher and reduces wear, thereby improving the overall efficiency of the crushing circuit.
Durable lining options: The feeding hopper can be fitted with various lining types, including manganese steel or wear-resistant steel plates, to prevent wear and extend the service life of the equipment when handling highly abrasive materials.
Technical Specifications
Parameter Specifications
Model 3896
Pan Size (Length x Width) 3800 mm x 9600 mm
Maximum Feed Size Capable of handling large-scale mining materials
Capacity Very high (2000 TPH, depending on application)
Drive System Dual vibrator motors
Stroke and frequency adjustable (with VFD option)
Grizzly Options Available with various bar spacings
Lining Heavy-duty wear-resistant lining
Application
The 3896 feeder is built for high-impact, high-capacity primary feeding applications:
·Mining and quarrying: Feeding mine ores and large quarry rocks into primary gyratory or jaw crushers.
·Aggregate production: Controlled feeding of blasted rock from dump hoppers to primary crushing stations.
·Heavy recycling: Processing large volumes of demolished concrete and asphalt to reduce main sizes.
·Heavy material handling: Reliable feeding of heavy, coarse materials in various industrial environments.
