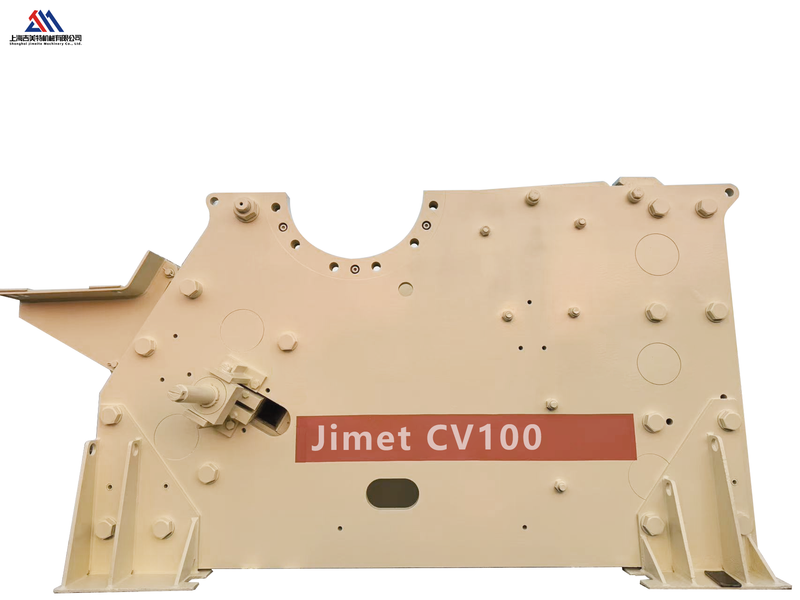

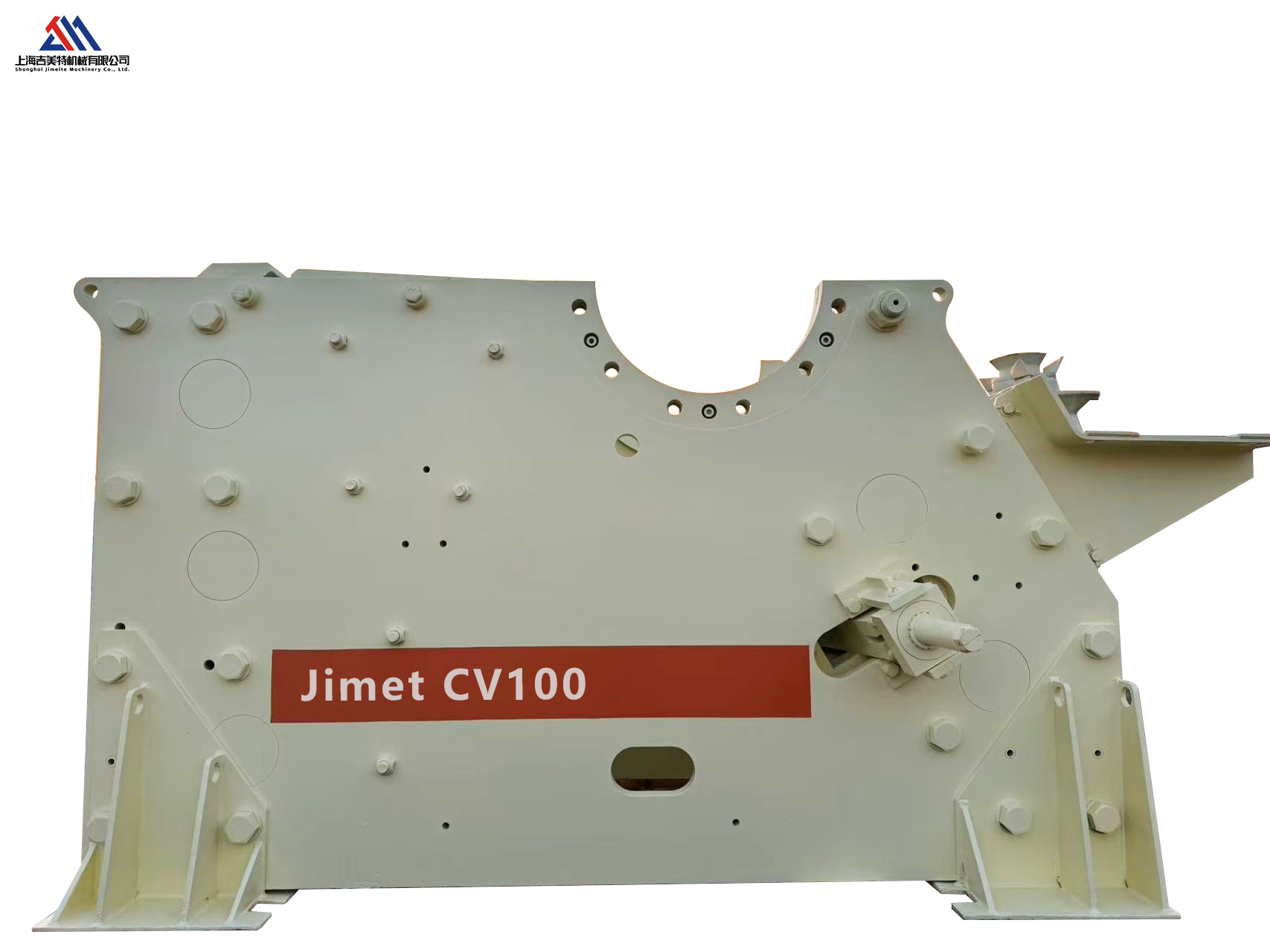

It is a medium-sized and cost-effective entry-level model within the C series jaw crusher family. It fully inherits the top design concepts and reliability genes of this series, making it an ideal choice for medium-sized fixed crushing stations, mobile crushing stations, and projects requiring compact and reliable coarse crushing solutions.
Small and medium-sized quarrying and sandstone processing plants: As primary crushers, they process materials (as limestone and bluestone.
Urban construction waste recycling plants: As coarse crushing equipment for mobile or fixed production lines, they handle concrete blocks, asphalt blocks, etc.
Contractors and projects: Suitable for medium- and short-term projects involving on-site crushing, such as those for highways, railways, and municipal construction.
Mine auxiliary crushing or small-scale production
(1)Modular and stress-free rack design:
It inherits the characteristic modular rack design of the C series. Key components are connected by high-strength bolts, avoiding welding stress and fatigue cracks, ensuring long-term structural integrity under heavy load impacts. Despite its small size, it has a robust "framework".
(2)The verified "steep elbow plate" kinematic design: optimized elbow plate angle and moving jaw motion trajectory ensure efficient crushing effect at the top of the crushing chamber, enhancing processing capacity and product uniformity, while reducing wear on the liners.
(3)Long-life bearings and precise assembly:
High-quality and large-sized self-aligning spherical roller bearings are adopted, with a rated life far exceeding the design requirements. The mating surfaces between the bearing housing and the frame are precisely processed and fixed by stress-free bolts to ensure uniform load distribution and smooth operation.
(1)Convenient maintenance features:
Wedge-type discharge port adjustment: The discharge port can be easily and precisely adjusted through a mechanical or hydraulic wedge system, which is faster and safer than the traditional gasket adjustment method.
(2)Symmetrical design of the tooth plates: Both the moving jaw and fixed jaw liners can be used in reverse, maximizing material utilization and extending the replacement cycle.
(3)Easy-access lubrication points: The lubrication points are centrally designed for convenient daily maintenance.
(4)Perfect mobile integration foundation:
Due to its compact size and weight, the crawler mobile jaw crusher station is the most commonly used core unit. Its design fully takes into account the rigidity of mobile applications and the demand for convenient services.
Parameter | Specification Value |
Feed Opening Size | 1,000×760mm |
Max Feed Size | ≤ 700 mm |
Capacity | 100 - 350 t/h |
Motor Power | 110 kW |
Eccentric Shaft Speed | 220 rpm |
Machine Weight (Main) | ≈ 20,000 kg -25,000kg |
