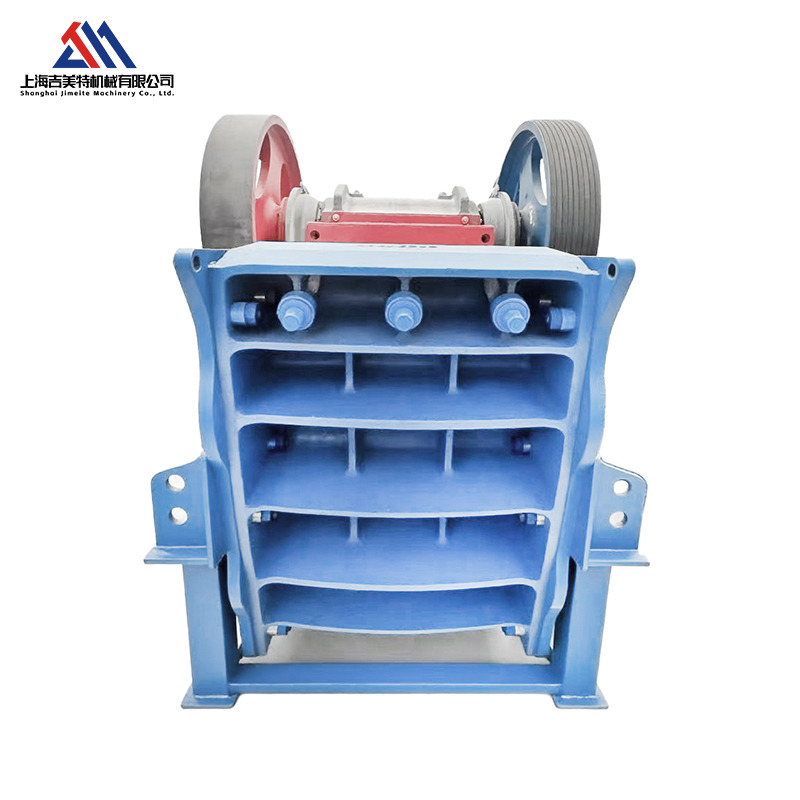

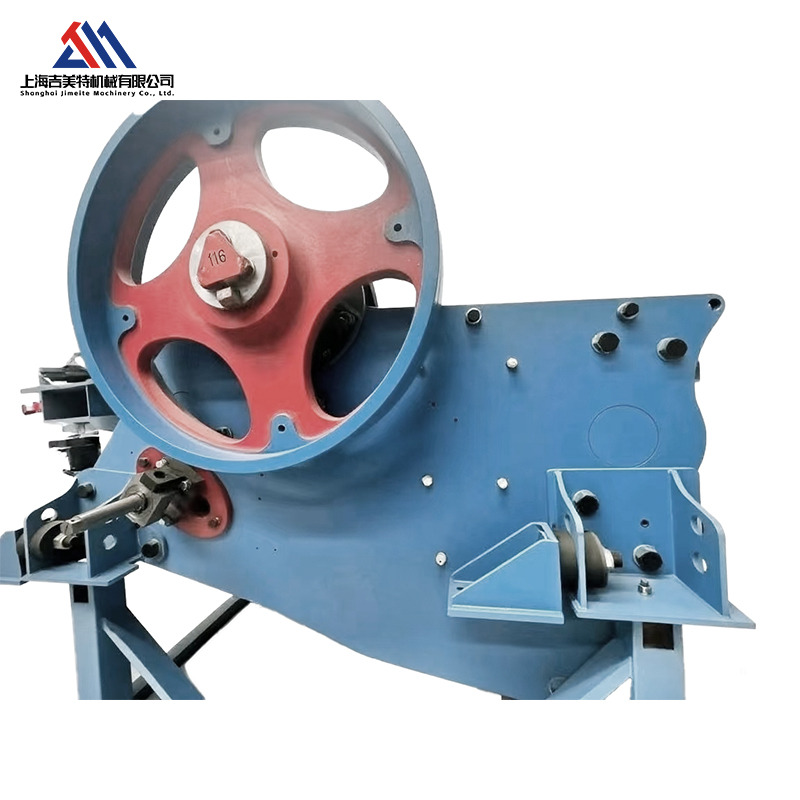

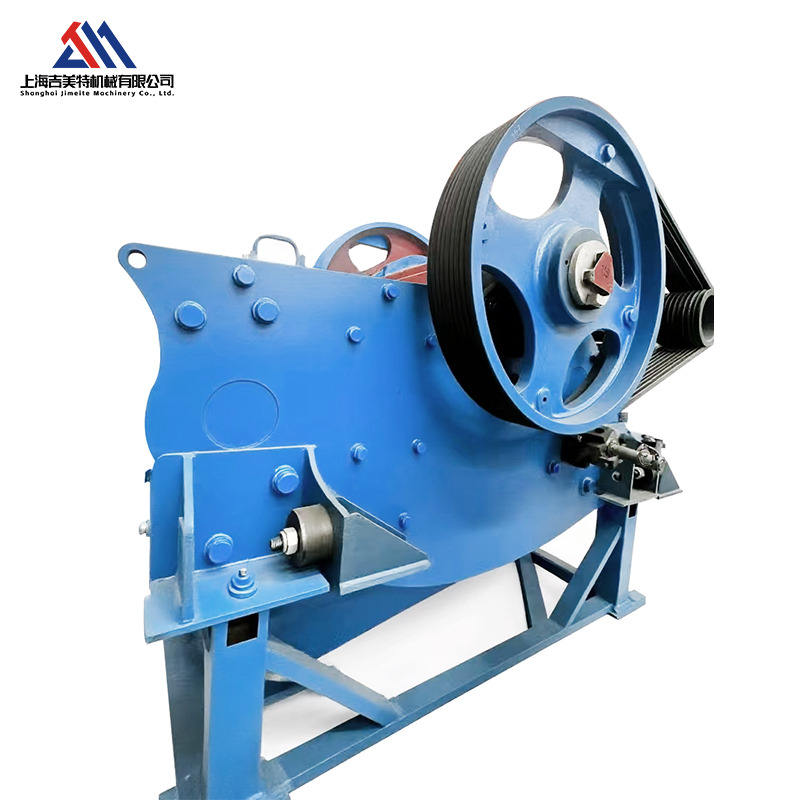

The CV116 European Standard Jaw Crusher is a high-performance coarse crushing equipment designed to European standards. Featuring a modular structure and hydraulic adjustment system, it is suitable for primary crushing of high-hardness materials (compressive strength ≤400MPa). With an inlet size of 1,100×650mm and maximum processing capacity of 450t/h, it is widely used in mines, quarries, and aggregate production lines.
Large-scale quarries: Crushing high-hardness rocks like granite and basalt to produce construction aggregates (30-150mm).
Metal mines: Primary crushing of highly abrasive minerals such as iron ore and copper.
Recycled construction waste: Processing steel-reinforced concrete and bricks for recycled aggregates.
Fixed/mobile crushing stations: Integrating with mobile chassis for temporary quarries or construction sites.
(1) Hydraulic discharge adjustment: Cylinder-driven wedge mechanism enables continuous adjustment (75-200mm range) with ±2mm precision.
(2) Heavy-duty welded frame: Welded Q345B high-strength steel with reinforced critical areas, increasing deformation resistance by 40%.
(3) Optimized crushing chamber: Non-symmetrical deep V-shaped chamber design with 22° intermeshing angle reduces clogging and boosts capacity (15% higher than traditional models).
(4) Dual-elbow plate overload protection: Hydraulic-mechanical dual safety with automatic reset to protect core components from breakable objects (e.g., iron blocks).
(5) Intelligent lubrication system: Centralized automatic lubrication for key bearing points, reducing manual maintenance and extending bearing life to 20,000 hours.
(1) High Output with Low Energy Consumption: The laminated crushing technology achieves an energy consumption of ≤0.9 kWh/t (granite processing conditions).

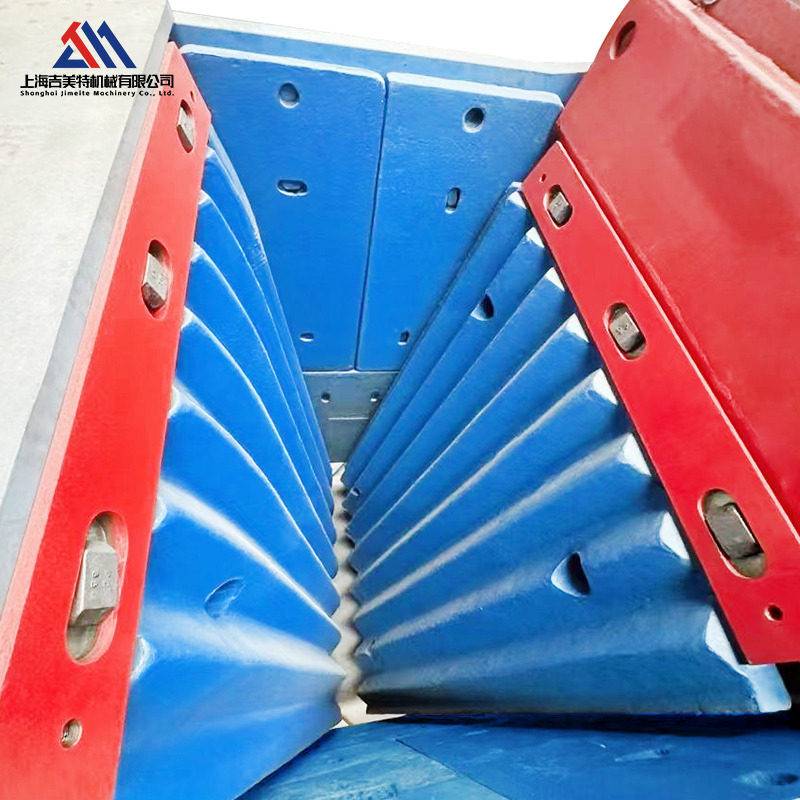

(2) Cost-Effective Maintenance: The jaw plates are made from high-manganese steel and wear-resistant alloy composite casting, ensuring a service life of 1,200 hours (granite).
(3) Rapid Production Response: Hydraulic adjustment of discharge ports enables particle size switching within 5 minutes.
(4) Intelligent Control: Optional PLC automatic control system monitors real-time load, temperature, and vibration parameters.
(5) Eco-Friendly Design: Enclosed structure with pulse dust removal interface ensures dust emissions ≤20 mg/m³.
Parameter | Specification Value |
Feed Opening Size | 1,100×650 mm (43×26 in) |
Max Feed Size | ≤ 800 mm (31") |
Capacity | 150 - 450 t/h |

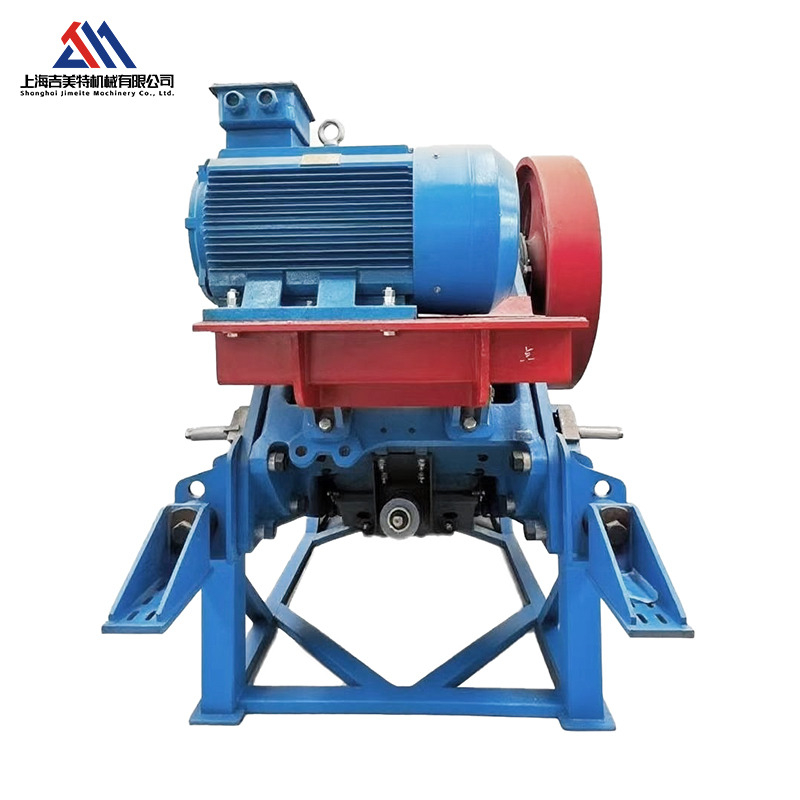

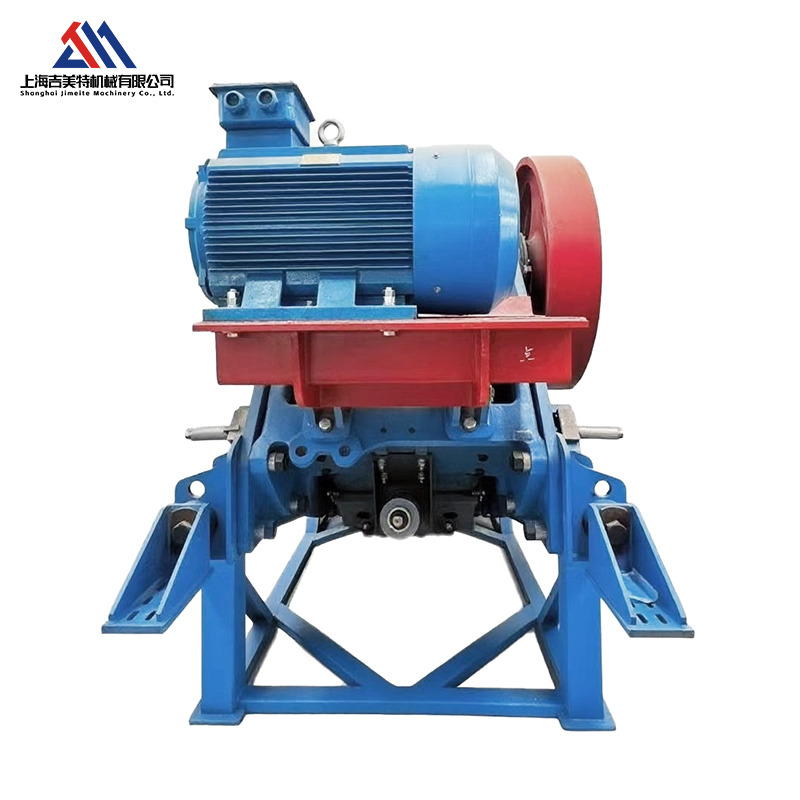

Motor Power | 132 kW (177 HP) |
Discharge Adjustment | 75 - 200 mm (3" - 8") |
Eccentric Shaft Speed | 220 rpm |
Machine Weight (Main) | ≈ 28,500 kg (62,800 lbs) |
Dimensions (L×W×H) | 3,200×2,450×2,850 mm (126×96×112 in) |
