The CV125 Jaw Crusher is a high-performance and highly reliable standard heavy-duty jaw crusher, widely used in medium to large-scale projects that require stable and efficient primary crushing. It is one of the most popular and common models in the global mining and aggregate industries.
Medium-sized to large-sized hard rock quarries: As primary crushers, they process granite, basalt, diorite, etc.
Metal mines: As primary or secondary crushing equipment for copper, iron, gold, etc. ores.
Large-scale aggregate production base: The core crushing equipment in the fixed production line.
Large-scale infrastructure projects: such as the production of aggregates for the construction of highways, railways and ports

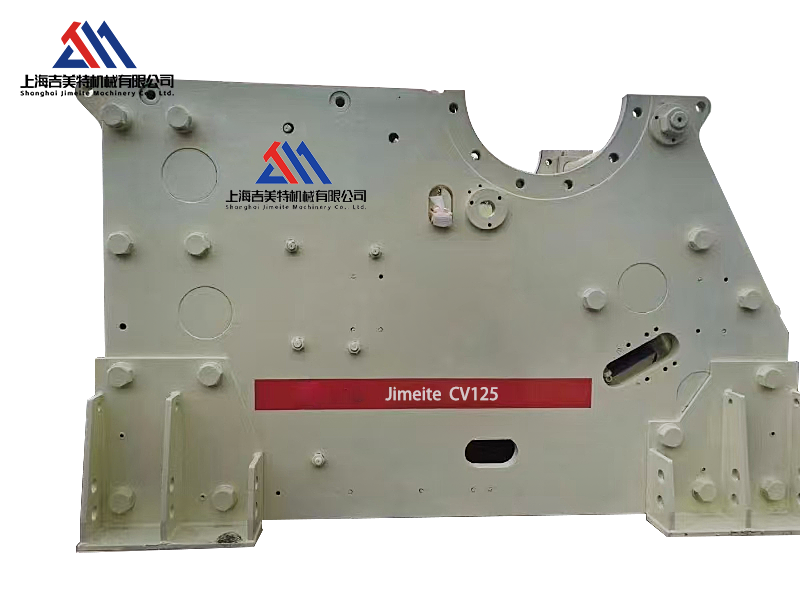

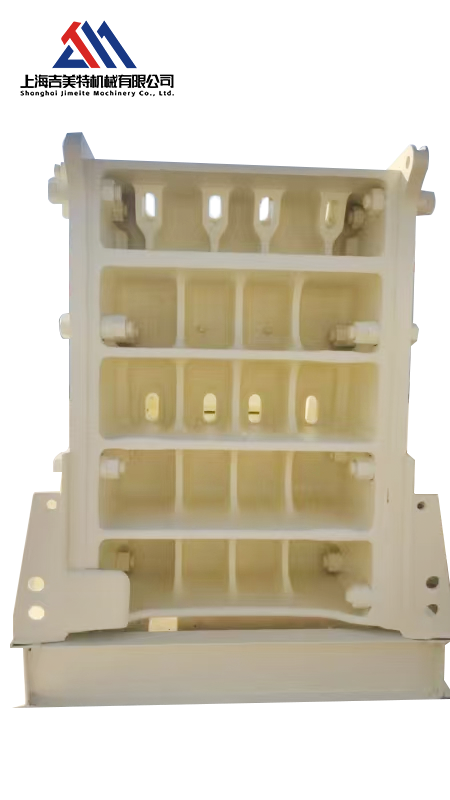

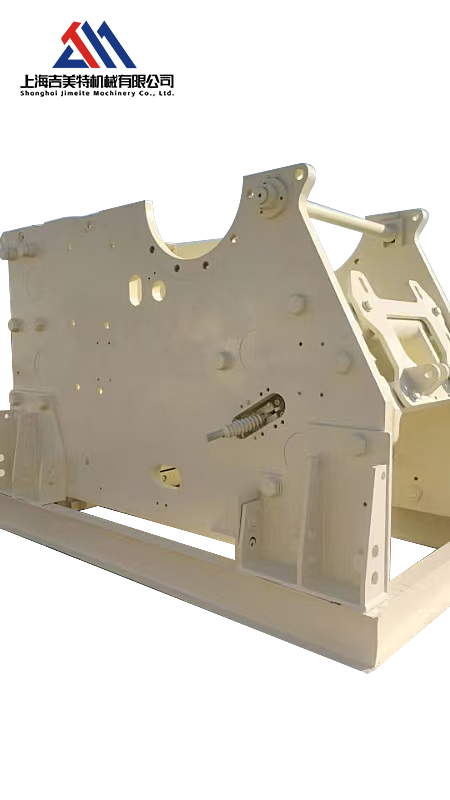

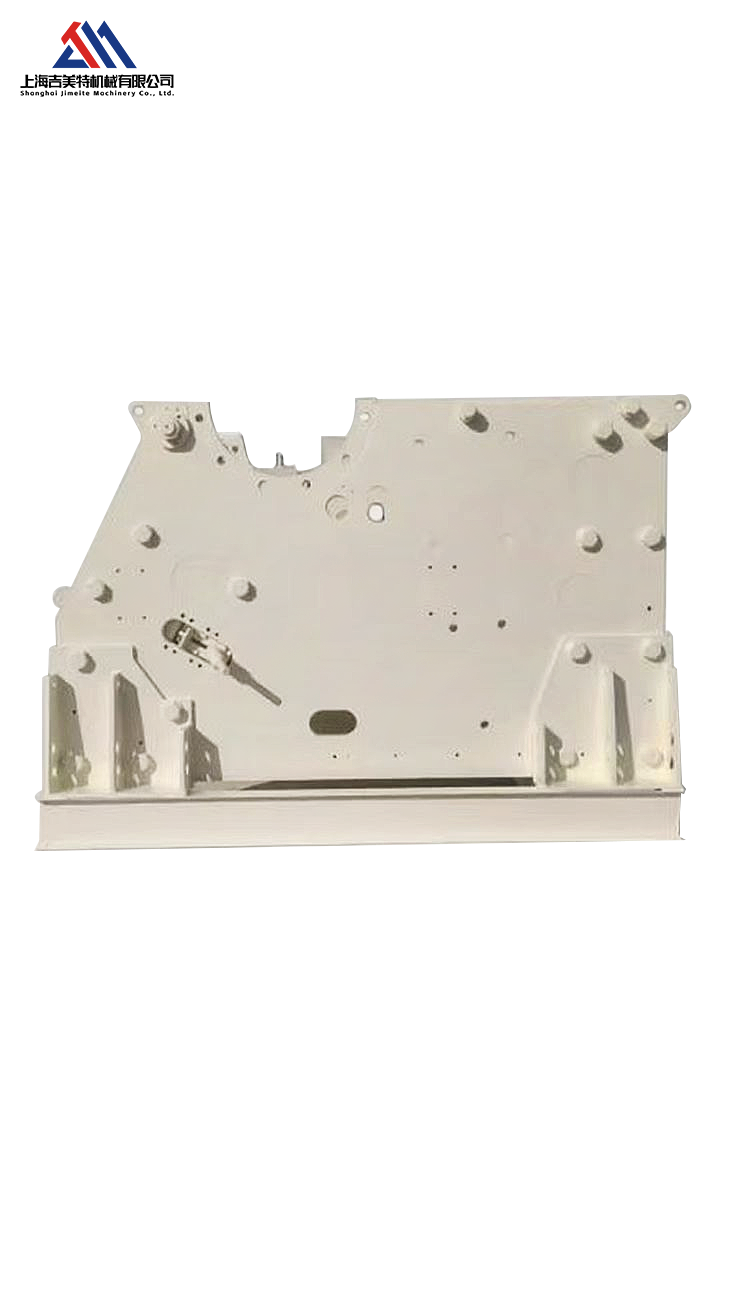

(1)Sturdy and durable modular frame:
This modular frame is designed without welding and using bolt connections. This design eliminates welding stress and has extremely high fatigue and impact resistance, ensuring the structural integrity of the equipment under heavy load cycles for decades. It also makes transportation and on-site assembly more convenient
(2)Optimized "steep elbow plate" crushing chamber:
Continuing the classic kinematic design of the C series, a powerful crushing force can be generated at the top of the moving jaw, enabling effective crushing and grinding of large pieces of materials. This also enhances processing capacity and product uniformity, while reducing the wear of the wear plates.
(3)Ultra-long-life bearing system:
Using oversized and heavy self-aligning spherical roller bearings, the rated life (L10) of the bearings exceeds the design life of the equipment. The bearing housing is precisely connected to the frame through stress-free bolts, ensuring uniform load distribution. This is the core for achieving extremely high equipment utilization rate.
(1)Fast and safe maintenance features:
Hydraulic wedge block discharge port adjustment system: By operating the hydraulic station, the discharge port can be safely and precisely adjusted in just a few minutes (without the need for manual gaskets), significantly reducing downtime and enhancing safety.
(2)Symmetrical and reversible jaw plates: Cast from high-strength alloy steel, they can be used in either direction after wear, maximizing material utilization.
(3)Integrated motor base and drive: The motor, V-belt drive system and main frame are designed as a single unit, simplifying the installation and alignment process.
(4)Comprehensive overload protection:
Usually, a shear pipe is used as a mechanical overload protection device. When encountering an unbreakable object, the shear pipe will break first, thereby protecting the expensive eccentric shaft and bearings and other core components. The repair process is quick and the cost is low.
Parameter | Specification Value |
Feed Opening Size | 1,250×950 mm |
Max Feed Size | ≤ 870mm |
Capacity | 250-600 t/h |
Motor Power | 160 kW |
Discharge Adjustment | 150-300mm |
Eccentric Shaft Speed | 220 rpm |
Machine Weight (Main) | ≈ 40,000-50,000 kg |
