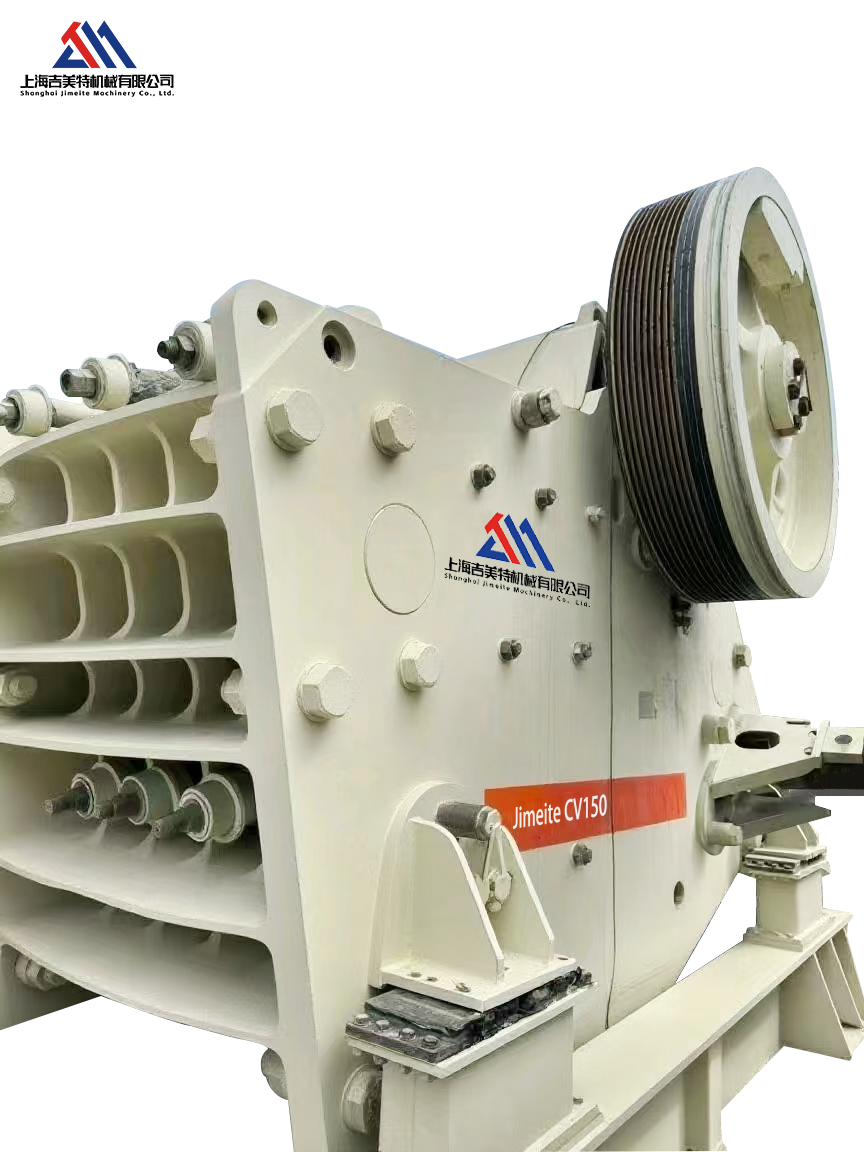

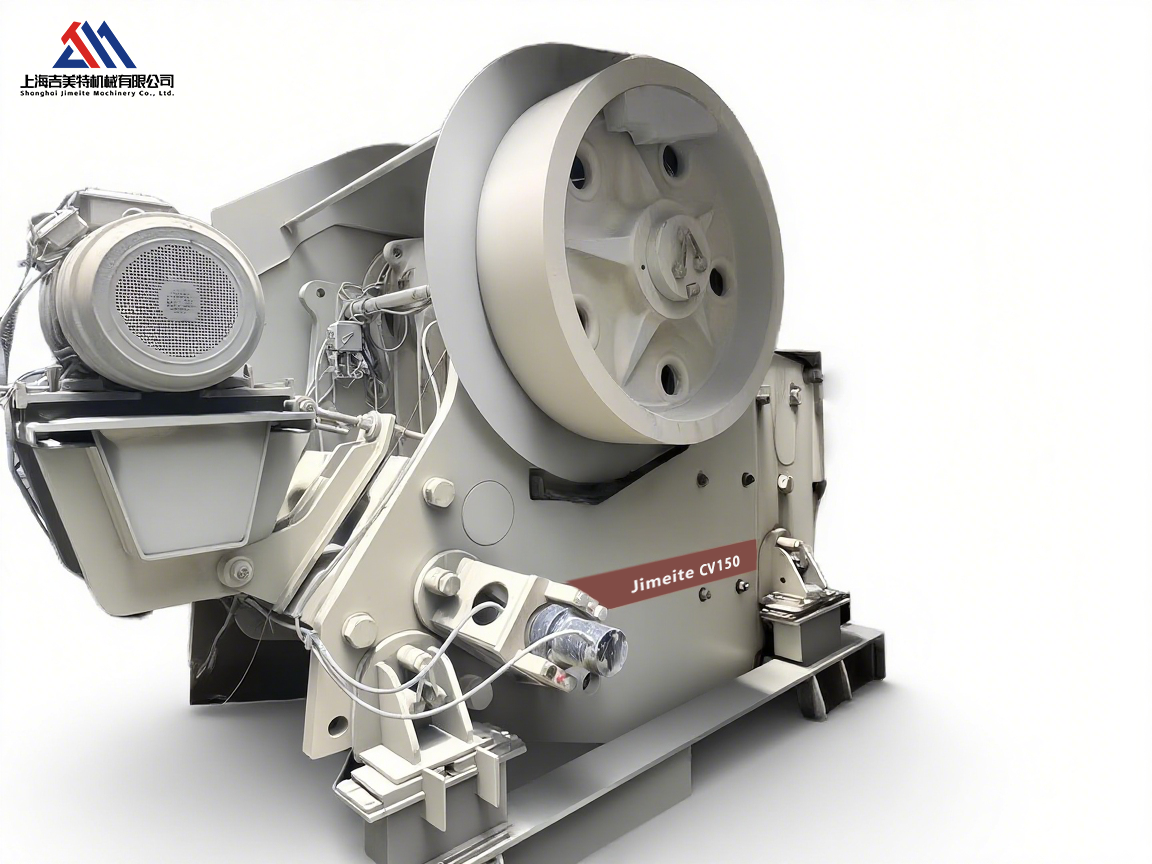

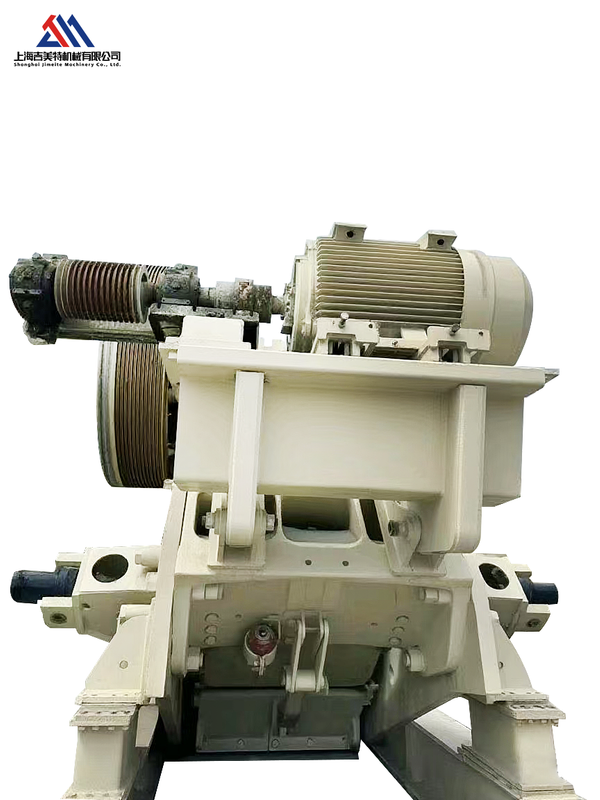

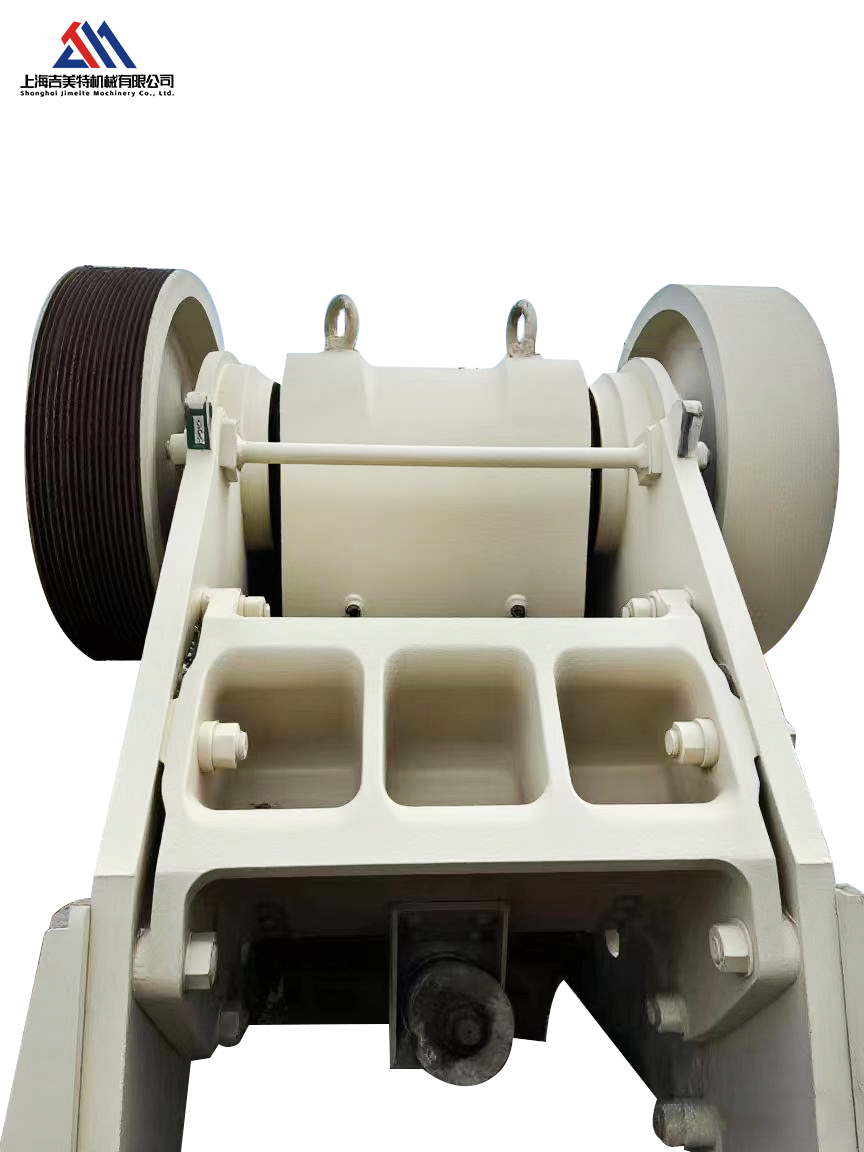

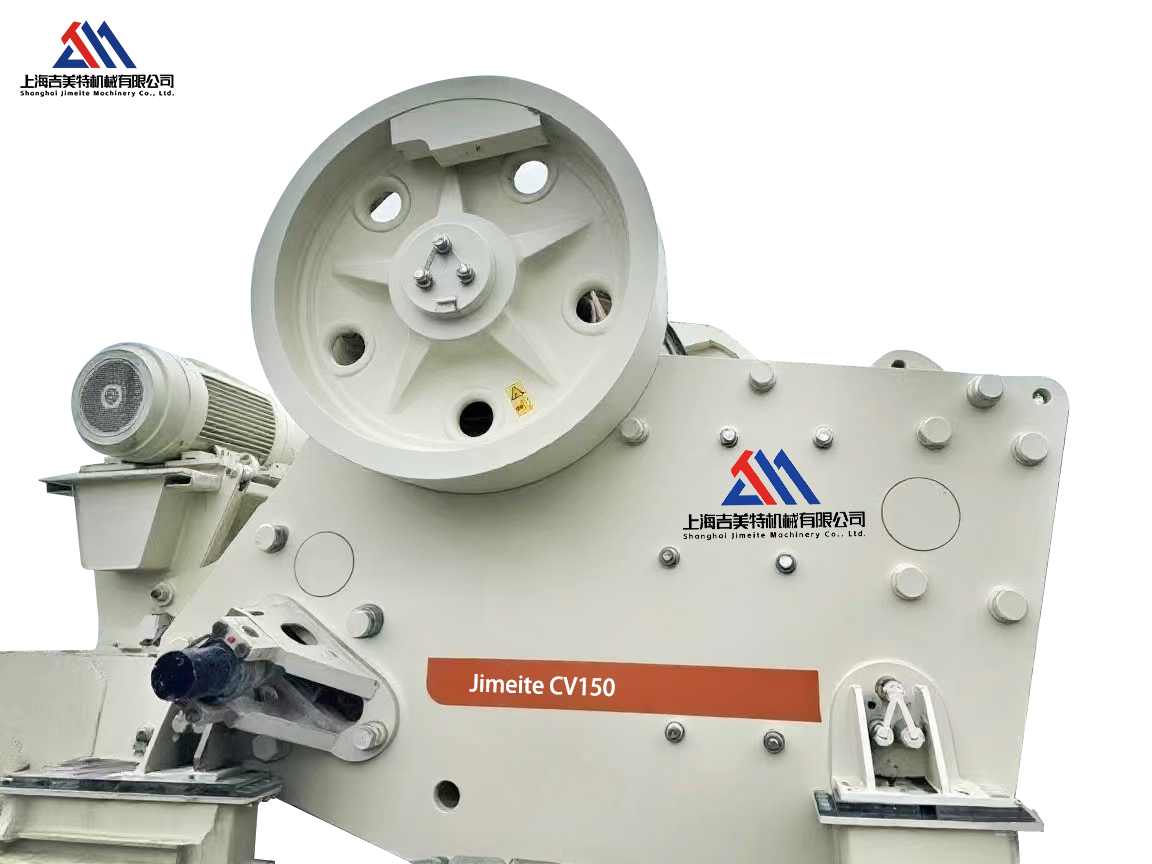

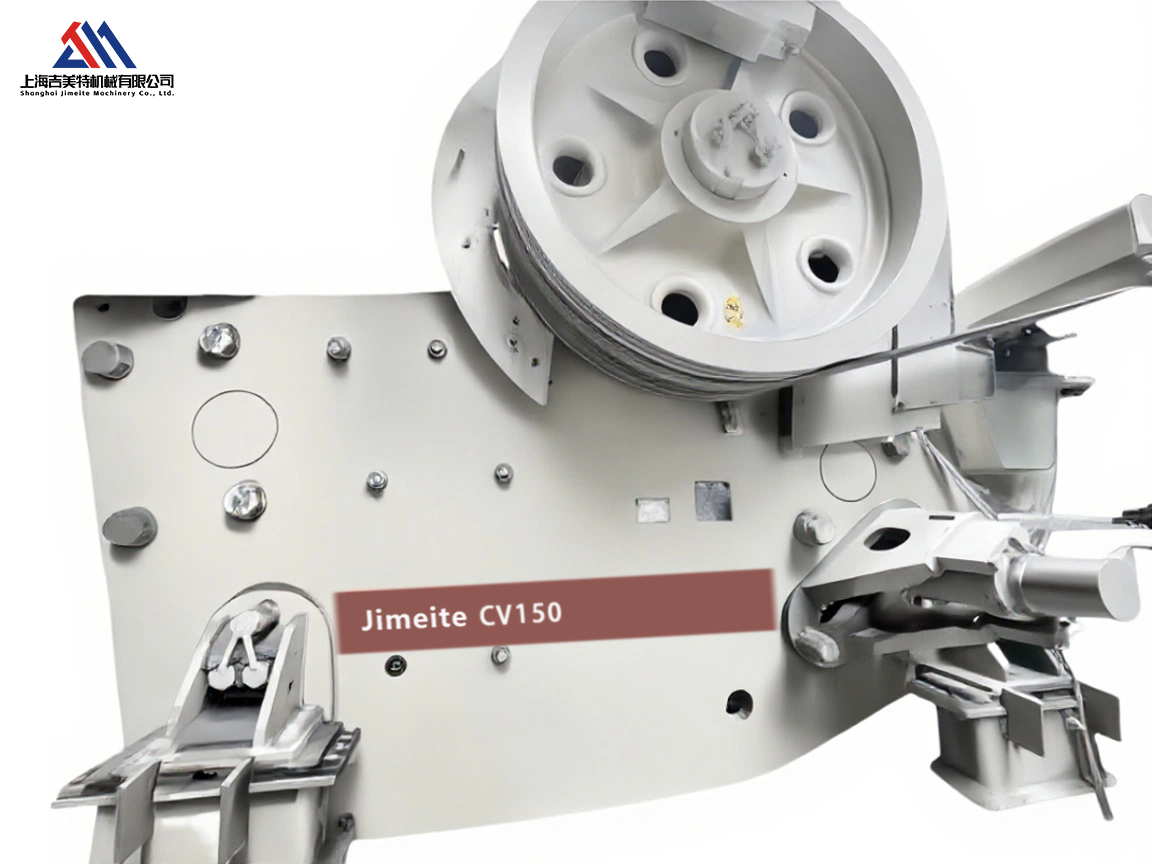

The CV150 Jaw Crusher is the top large-scale and high-performance model within the jaw crusher family, it represents the pinnacle of heavy-duty fixed primary crushing technology. It is specifically designed for high-capacity and high-reliability hard rock crushing and is the "heart-level" coarse crushing equipment in large mines and huge aggregate production lines.
Large to super-large hard rock metal mines: As the main primary crusher for copper, gold, iron ore, etc., it is the "throat" equipment of the mine's processing plant.
Giant granite/andesite quarries: Used for the first-level crushing to produce high-value aggregates.
Million-ton sand and gravel aggregate base: The core crushing unit in the fixed production line, providing raw materials for multiple sand crushing lines that follow.
National-level major infrastructure projects: such as super aggregate factories for hydropower station dams, deep-sea ports, and high-speed railway networks, etc.
(1)Unparalleled rack strength:
The modular rack is constructed using "weld-free, bolted connection" technology. It is made by connecting high-strength cast steel components and thick steel plates through massive pin shafts and ultra-high-strength prestressed bolts. This design completely eliminates welding fatigue cracks, providing industry-leading resistance to impact and alternating loads, with a design lifespan of up to several decades.
(2)Revolutionary "Steep Elbow Plate" design and heavy-duty moving jaw:
The jaw body is made of a single-piece high-strength cast steel component instead of a welded structure, eliminating the risk of stress concentration in the core moving parts.
The optimized elbow plate angle and the increased eccentric distance result in a deeper crushing stroke and greater crushing force, making it particularly adept at handling plate-shaped or large-sized materials. The single-pass crushing ratio is high.
(3)Ultra-long-life "Fortress" bearing system:
Equipped with specially designed self-aligning roller bearings of extremely large diameter, their rated life (L10) exceeds the designed operating hours of the equipment.
The mating surface between the bearing housing and the frame has been precisely machined by CNC technology and is fixed by stress-free bolts, ensuring that the huge crushing force is evenly and smoothly transmitted and absorbed.
(1)Ultra-efficient maintenance and adjustment system:
Fully automatic hydraulic wedge-type discharge port adjustment system: Operators can precisely set and lock the discharge port within minutes in the control room. It is safe, fast, and repeatable, saving several hours of downtime compared to the traditional gasket method.
(2)Quickly replaceable jaw plate system: The jaw plates are mechanically locked by filling the backside with high-performance epoxy resin. Combined with dedicated hydraulic tools, the replacement time can be minimized. The jaw plate material is the patented MX or M1 ultra-high wear-resistant alloy steel of Metso, with an extremely long service life.
(3)Intelligent overload protection and status monitoring:
Integrated hydraulic overload protection: When encountering an unbreakable object, the system automatically releases the pressure to protect the core components. Once the fault is resolved, it can be reset with a single click.
Perfectly compatible IC™ intelligent crusher control system: It can monitor real-time key parameters such as bearing temperature, vibration, lubrication status, and load power, enabling predictive maintenance and operational optimization. It is a key component of modern intelligent mines.
Parameter | Specification Value |
Feed Opening Size | 1,500*1,070 mm |
Max Feed Size | 1,070mm |
Capacity | 500-1200t/h |
Motor Power | 250kw |
Discharge Adjustment | 200-400 mm |
Eccentric Shaft Speed | 250 rpm |
Machine Weight (Main) | ≈ 60,000-75,000kg |
