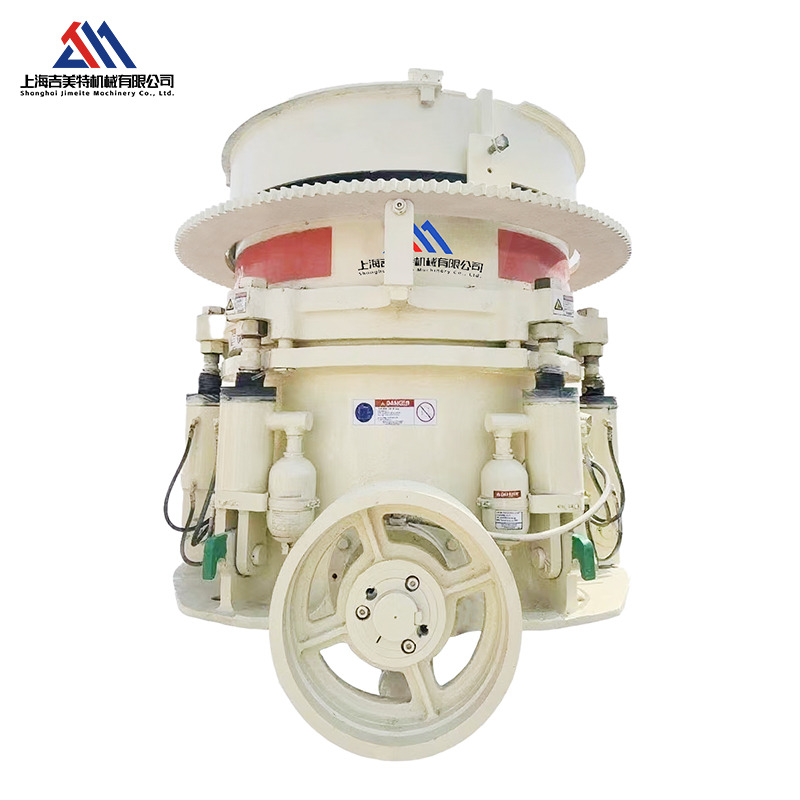

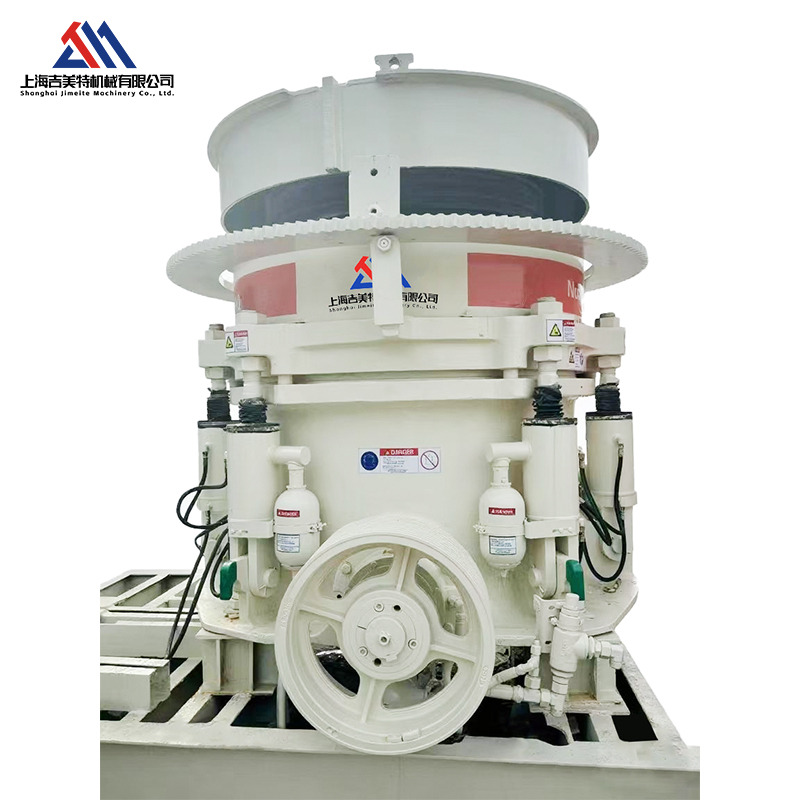

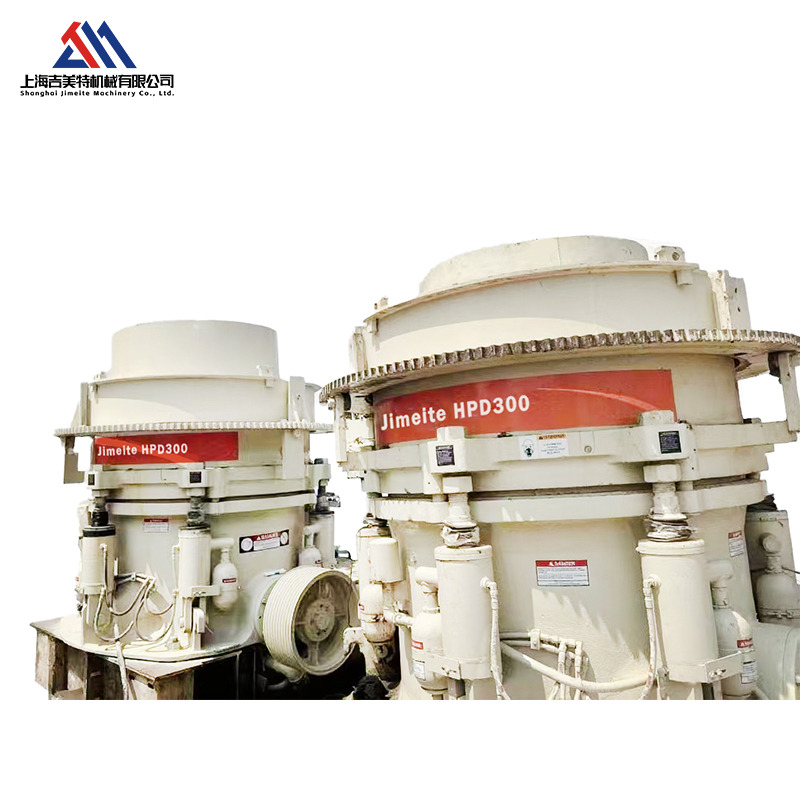

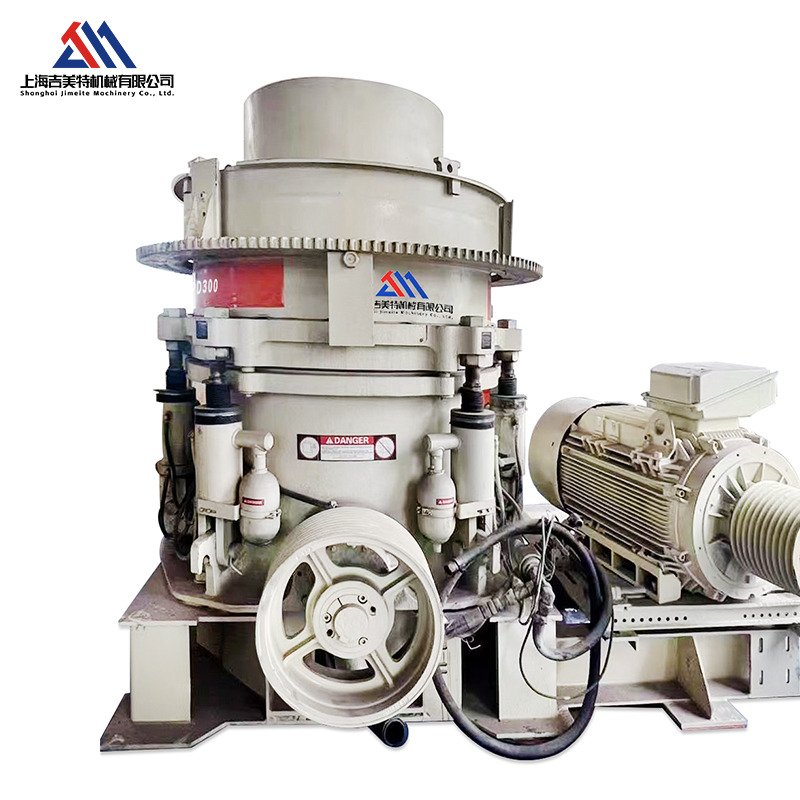

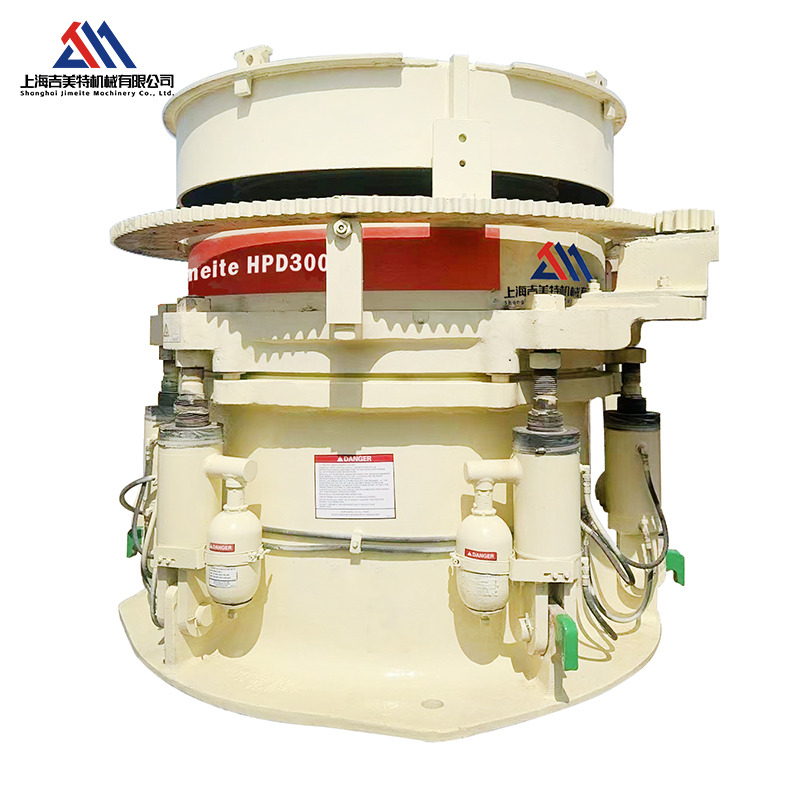

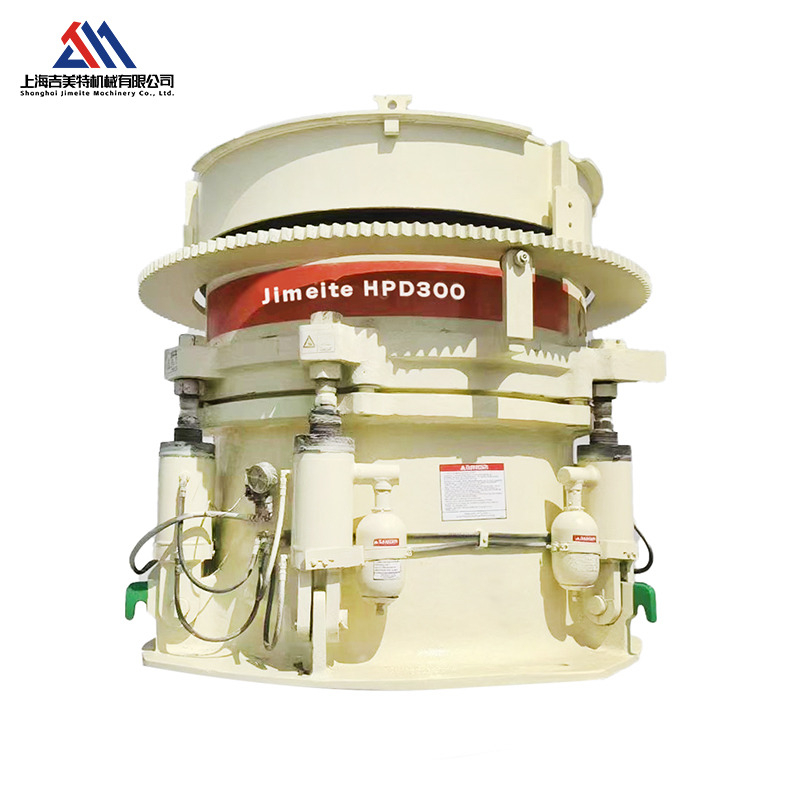

The HPD300 is a multi-cylinder hydraulic cone crusher specifically designed for medium and fine crushing (secondary/tertiary crushing). Its core technology employs the layered crushing principle to efficiently process medium-hard and harder ores and rocks, achieving high production capacity and excellent product particle size. Widely used in mines, quarries, and aggregate production lines.
Mines: Crushing iron ore, copper ore, gold ore, and other metal ores. Quarries: Secondary/tertiary crushing of construction aggregates such as granite, basalt, and limestone. Aggregate Processing: Producing high-grade sand and gravel materials for concrete (0-5mm, 5-10mm, etc.). Industrial Mineral Processing: Fine crushing of non-metallic minerals like quartz sand and feldspar.
(1) Multi-cylinder hydraulic structure: Driven by hydraulic motors, it precisely controls discharge ports and overload protection, offering stability far exceeding mechanical spring structures.
(2) Layered crushing principle: Multi-layer compression within the crushing chamber significantly enhances production capacity and improves product particle size (high proportion of cubic particles).
(3) Automatic control system: Integrated with IC70C automation system, real-time monitoring of load, temperature, power parameters optimizes operational efficiency.
(4) Quick liner replacement: Patent design eliminates epoxy resin filling, reducing liner replacement time to 1-2 hours (traditional method required 8 hours).
(5) Overiron protection: Hydraulic system automatically releases non-crushable materials (e.g., metal) to protect core components.
(6) Multiple chamber types: Standard (medium crushing), short-head (fine crushing) chambers adapt to different product particle size requirements.
(1) High Output with Low Energy Consumption: The laminated crushing system boosts production capacity by 15%-25% while reducing energy consumption by over 10%.
(2) Superior Particle Form: Over 90% of particles are cubic, minimizing flaky aggregates to enhance concrete strength.
(3) Cost-Effective Maintenance: 30% longer plate lifespan and quick replacement design minimize downtime.
(4) Smart Operation: Automated system enables "one-click adjustment" and fault alerts, reducing manual intervention.
(5) Enhanced Reliability: Heavy-duty frame with hydraulic overload protection ensures lower failure rates than traditional cone crushers.
Parameter | Specification Value |
Max Feed Size | ≤ 230 mm (9") <sup>*</sup> |
Capacity | 120 - 580 t/h |
Motor Power | 220 kW (300 HP) |
CSS Range (Discharge Setting) | 8 - 45 mm (Standard Cavity) |
Max Throughput | 580 t/h |
Machine Weight | ≈ 16,000 kg (35,270 lbs) |
Dimensions (L × W × H) | 2,820 × 2,050 × 3,140 mm (111 × 81 × 124 in) |
