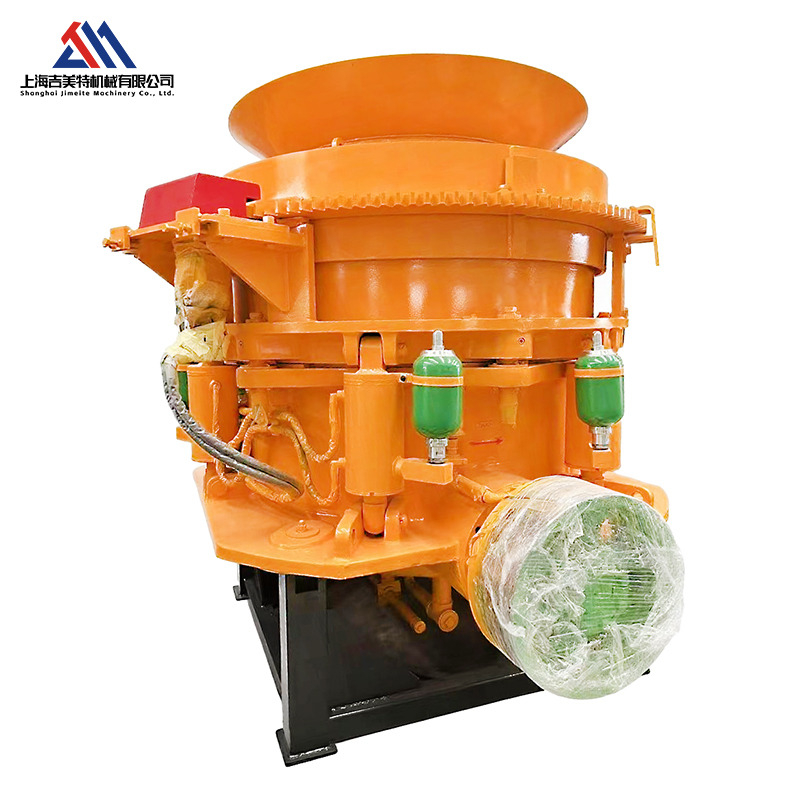

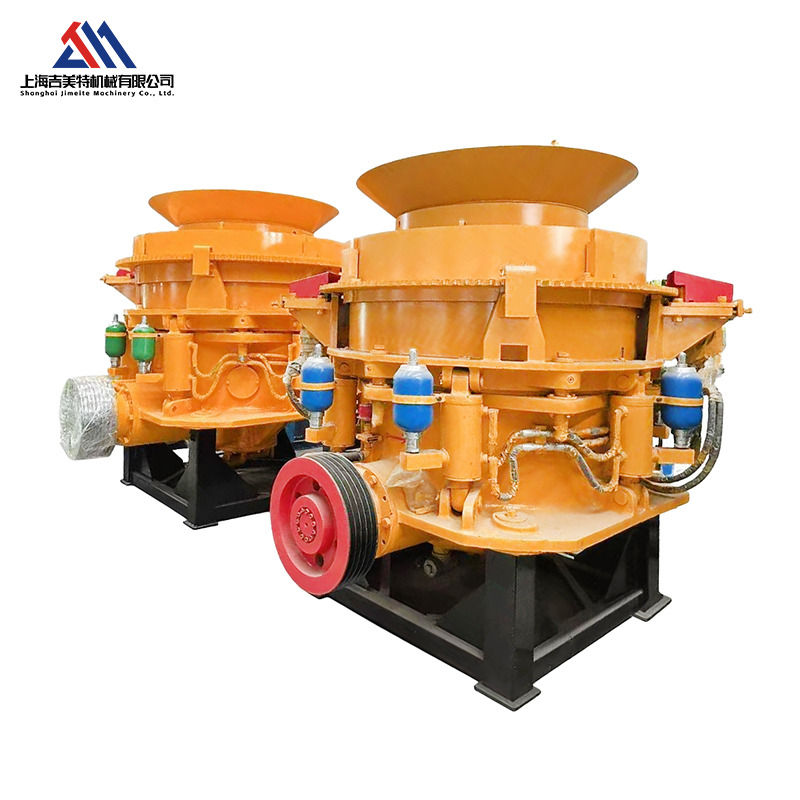

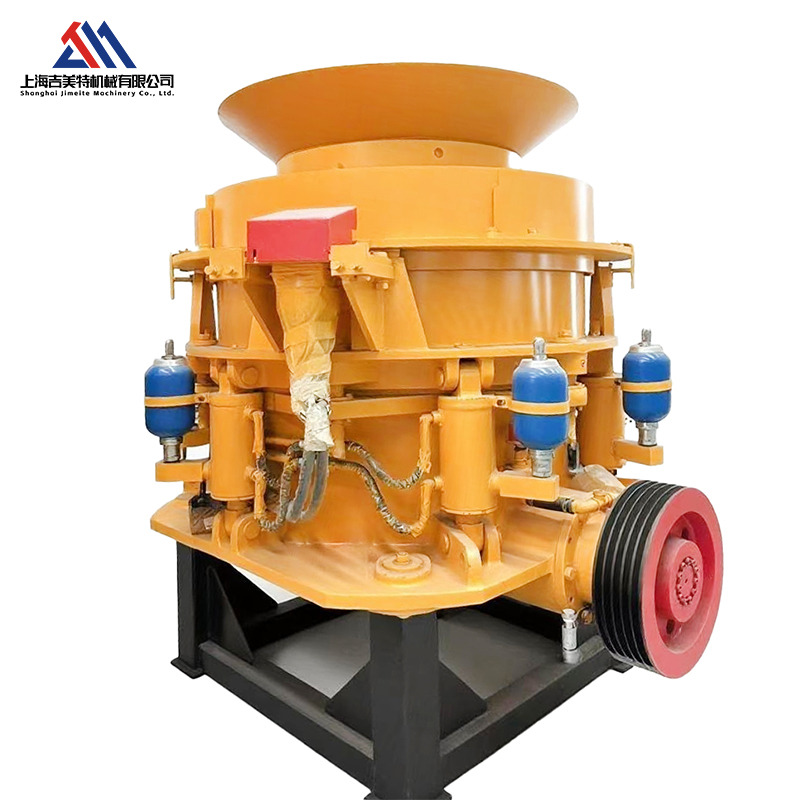

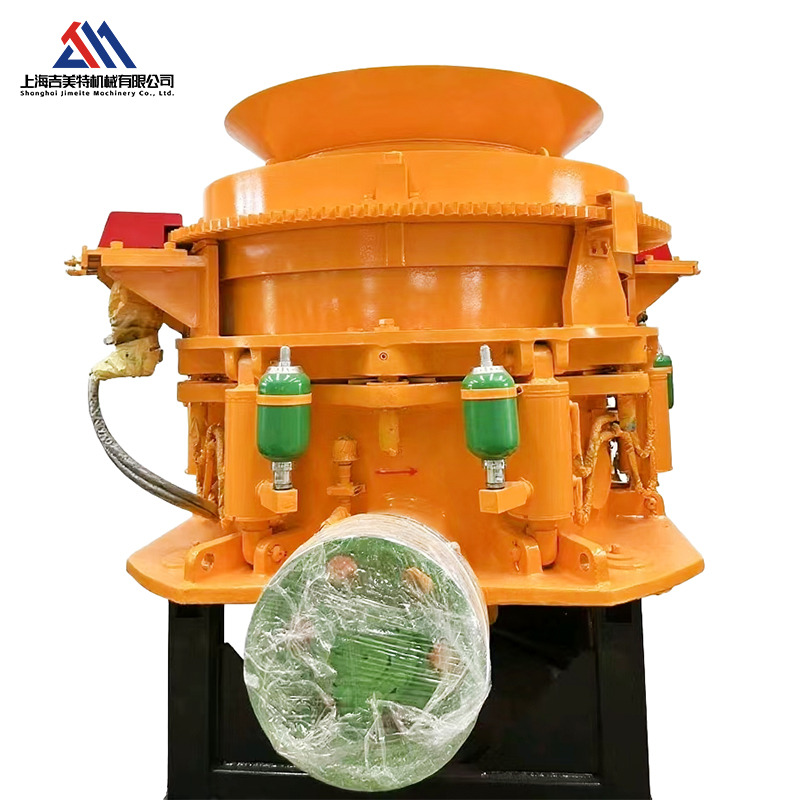

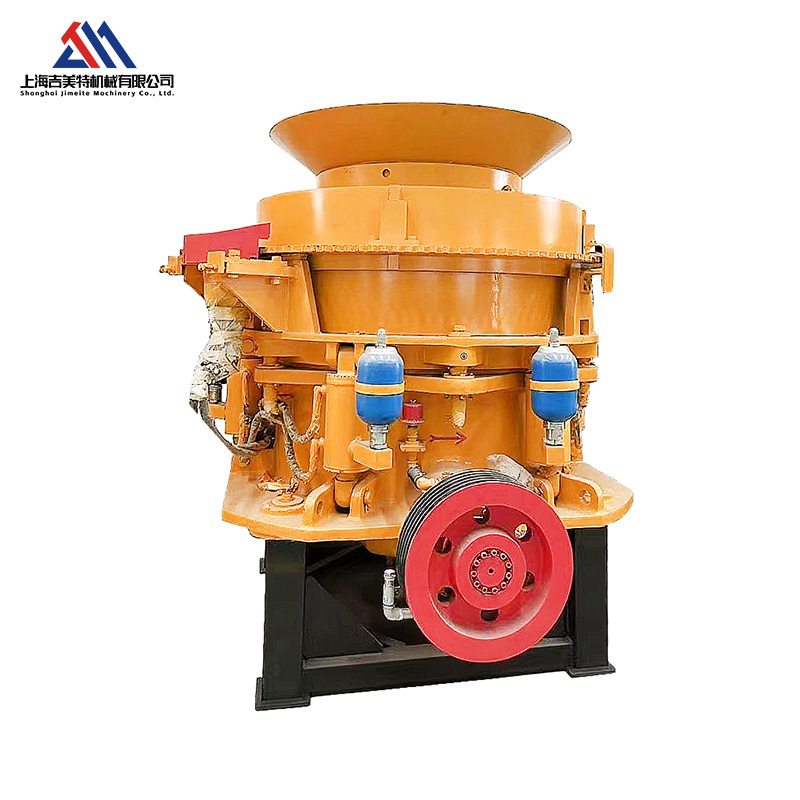

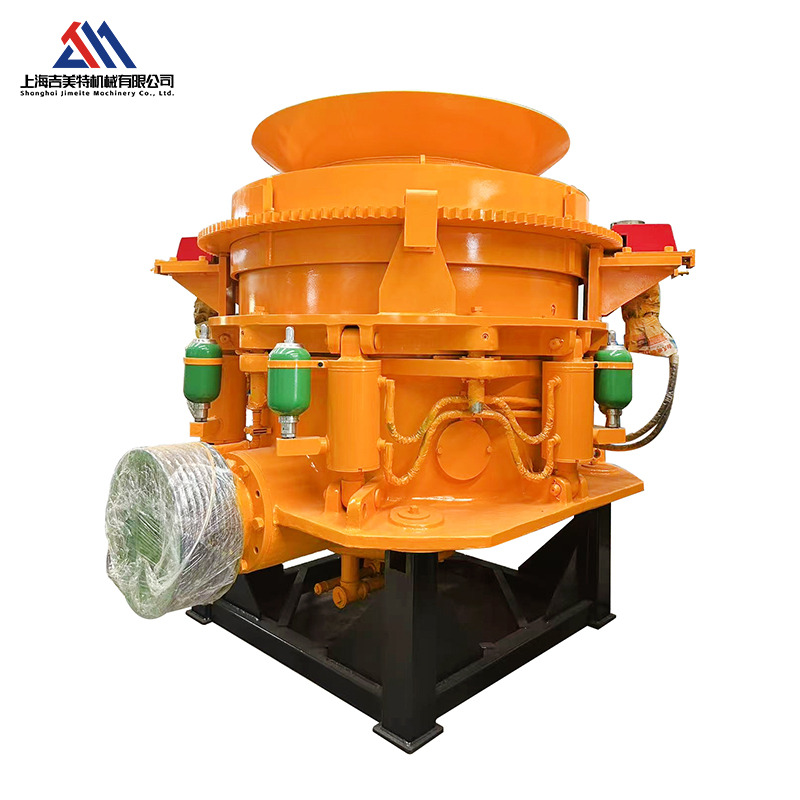

The HPD500 is a high-performance multi-cylinder hydraulic cone crusher developed by China's leading crushing equipment manufacturer, specifically designed for medium-coarse crushing of materials with compressive strength ≤350MPa. Combining European hydraulic technology with localized manufacturing advantages, this model employs laminated crushing principles and delivers a maximum processing capacity of 600 t/h, serving as core secondary crushing equipment in large-scale sand aggregate production lines and metal mines.
Large sand aggregate plants: Crushing granite, basalt, etc., to produce 5-40mm high-grade manufactured sand aggregates. Metal mines: Medium-coarse crushing of copper, iron ores (product size ≤25mm in closed-loop circulation). Cement raw material preparation: Fine crushing of limestone to ≤30mm for vertical mill systems. Construction waste recycling: Tertiary crushing of concrete blocks (0-15mm recycled aggregates).
(1) Multi-cylinder hydraulic system: 6 hydraulic cylinders coordinate spindle positioning, with discharge port adjustment accuracy ±1mm and overload protection response time <0.1 seconds. (2) Intelligent control system: Equipped with HMI touchscreen + PLC, displaying real-time parameters including bearing temperature, hydraulic pressure, and power load.
(3) Modular liner design: Lining replacement time ≤4 hours (traditional models require 8 hours), reducing locking bolts by 40%.
(4) Bidirectional iron protection: Hydraulic system automatically releases non-shatterables (e.g., metal parts) and resets quickly (<3 minutes).
(5) Low-Vibration Rotor: Equipped with an eccentric sleeve and counterweight for dynamic balance, achieving vibration values ≤2.8mm/s (International ISO standard ≤4.5mm/s).
(1) High Output at Low Cost: Layered crushing consumes ≤0.75 kWh/t (limestone), 25% more energy-efficient than spring cone crushers.
(2) Premium Particle Quality: Cube-shaped particles account for ≥85%, with flaky/needle-like particles <10% (mechanically controlled sand fineness modulus between 2.6-3.0).
(3) Maintenance Convenience: Centralized lubrication system enables 8-hour continuous operation without manual intervention.
(4) Smart Technology: Supports remote monitoring (4G module optional), with automatic fault diagnosis and alarm notifications.
(5) Domestic Cost-Effectiveness: Prices are 60% of imported models (e.g., HP500), with spare parts availability within <7 days.
Parameter | Specification Value |
Max Feed Size | ≤ 250 mm (10") |
Capacity | 200 - 600 t/h |
Motor Power | 315 kW (422 HP) |
CSS Range | 8 - 45 mm (0.3" - 1.8") |
Max Throughput | 600 t/h |
Machine Weight (Main Body) | ≈ 26,800 kg (59,100 lbs) |
Dimensions (L × W × H) | 3,650 × 2,880 × 3,420 mm (144 × 113 × 135 in) |
