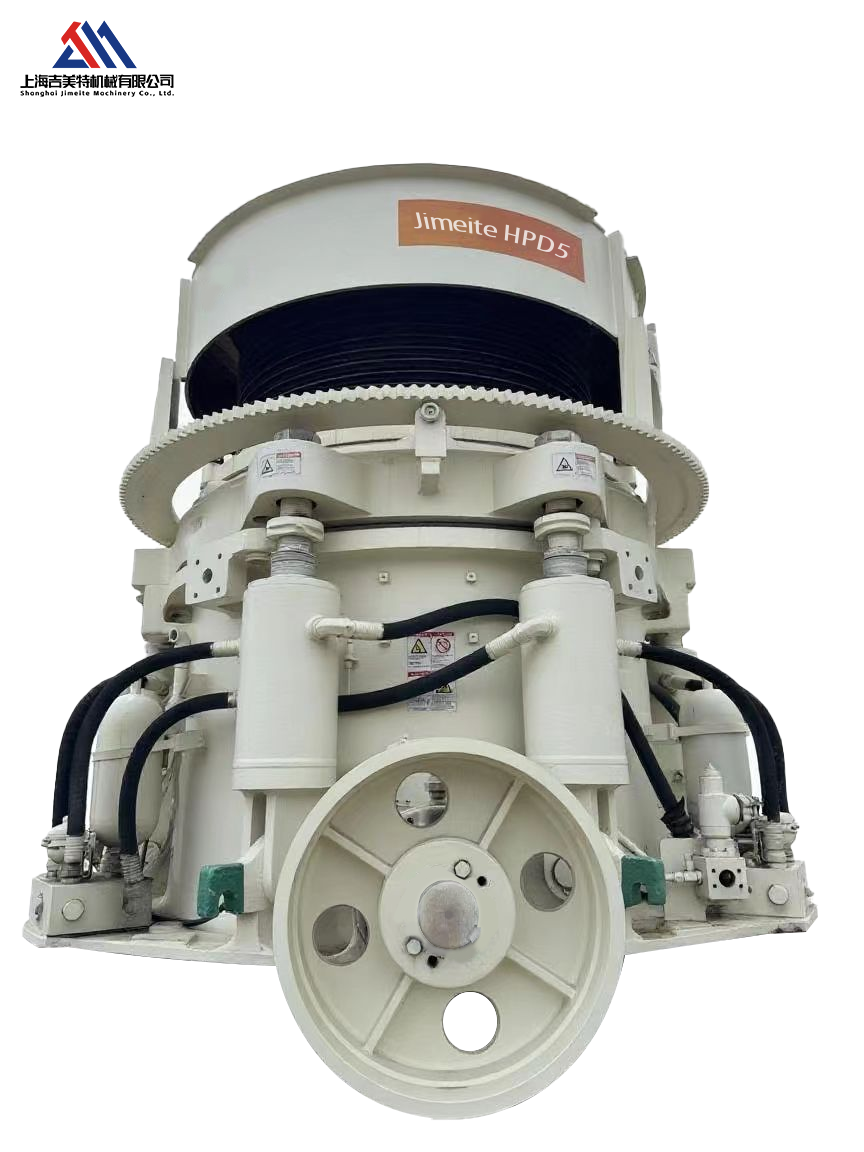

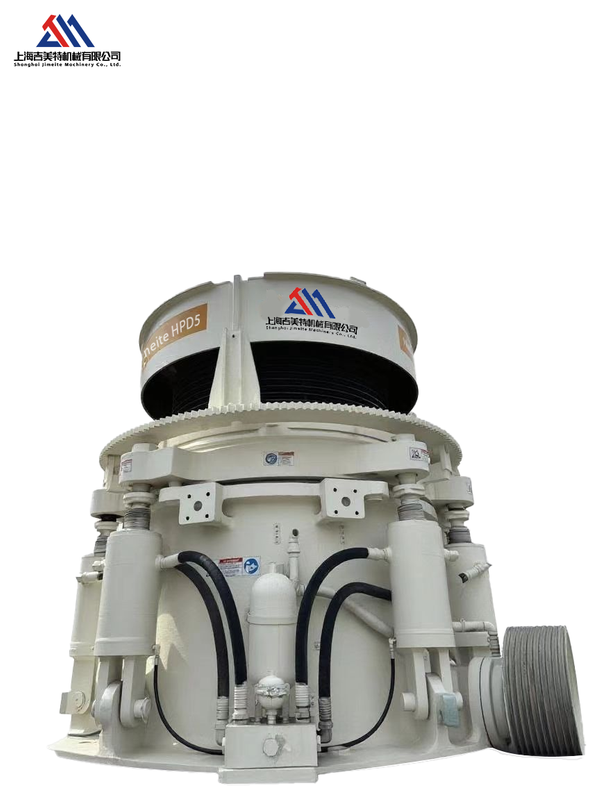

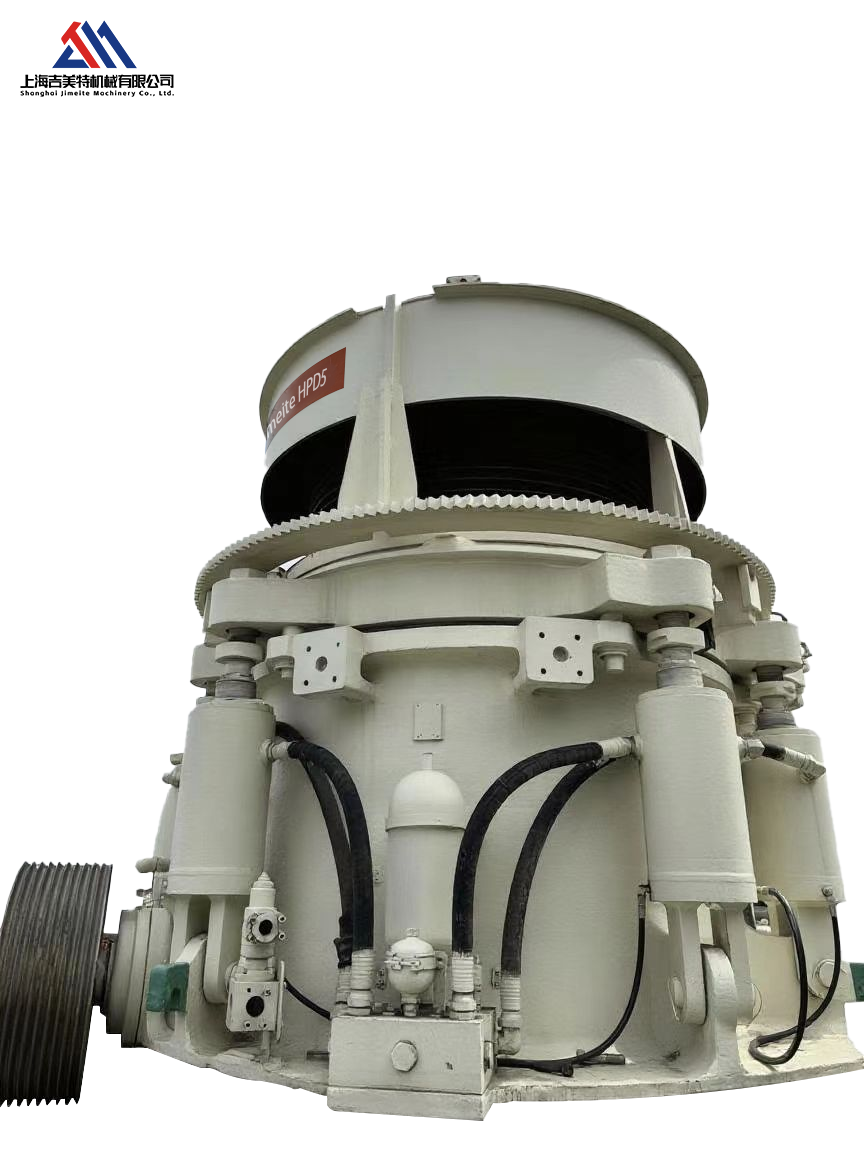

The HPD5 is a high-performance multi-cylinder hydraulic cone crusher developed by China's leading crushing equipment manufacturer, specifically designed for medium and fine crushing, it is especially suitable for high-output and high-wear conditions, such as secondary, tertiary or sand and gravel shaping crushing of hard rocks (granite, basalt, quartzite).. Combining European hydraulic technology with localized manufacturing advantages, this model employs laminated crushing principles and achieve high output, good grain shape of products, and extremely high degree of automation., serving as core secondary crushing equipment in large-scale sand aggregate production lines and metal mines.
(
Large-scale aggregate production: Core medium and fine crushing equipment in commercial quarries and large-scale sand and gravel aggregate production lines.
High-value mines: Used in the fine crushing section of metal mines (such as copper, gold, and iron) to achieve highermineral liberation.
Industrial mineral processing. Harsh working conditions: handling highly abrasive and high-strength materials, demanding extremely high reliability and durability of the equipment.
(1)High crushing ratio and high yield:
By optimizing the design of the fixed spindle and the high eccentricity/high swing frequency, extremely high crushing speed and large stroke have been achieved. This enables more qualified products to be produced per revolution under a given discharge port, and higher output per unit power.
(2)Laminated fracture and excellent grain shape:
The perfect fragmentation cavity design ensures that the materials are crushed between multiple layers of particles (layered crushing), rather than being crushed by a single particle impact. This maximizes the production of cubic-shaped particles and reduces the content of needle-like and flake-like materials, which is crucial for the production of high-quality concrete and asphalt aggregates.
(3)Top hydraulic service device: All hydraulic functions (such as adjusting the discharge port, cleaning the crushing chamber, and replacing the liner) are accomplished through a single hydraulic station at the top. The operator does not need to enter beneath the equipment, ensuring high safety and short maintenance time.
(4)Double-acting hydraulic cylinder: It serves as both the iron release device and the adjustment mechanism. Iron or non-crushable objects passing through can automatically reset quickly.
(5)Replacement of the liners is simple: Through the hydraulic system, the replacement process of the fixed cone and moving cone liners is standardized, and the time consumption is short.
(1)Heavy-duty spindle and high swing frequency:
With the design of a large-diameter fixed main shaft, it has strong load-bearing capacity and operates extremely stably.
(2)Intelligent control system:
It is usually equipped with an advanced automatic control system, which can monitor key parameters such as the position of the spindle, pressure, temperature, and the condition of the lubricating oil in real time.
(3)Bidirectional iron-release and cavity-clearing function:
When a blockage occurs, the device can be operated in both directions (raising or lowering the fixed cone) to quickly clear the crushing chamber and resume production. The downtime for cleaning the chamber during shutdown is extremely short, which is one of its prominent advantages.
(4)Oil-lubrication and cooling system:
Equipped with an independent forced oil lubrication station and air-cooled or water-cooled coolers, it ensures that the bearings and gears operate at the optimal temperature, thereby extending the lifespan of the key components.
| Parameter | Specification |
| Max Feed Size | ≤ 317mm(12.5") |
| Capacity | 200-600t/h |
| Motor Power | 370kw(500 hp) |
| CSS Range | 8 - 45 mm (0.3" - 1.8") |
| Max Throughput | 600t/h |
| Machine Weight (Main Body) | 29,000kg(64,000lbs) |
| Dimensions (L × W × H) | 3,650*2,880*3,420mm |
