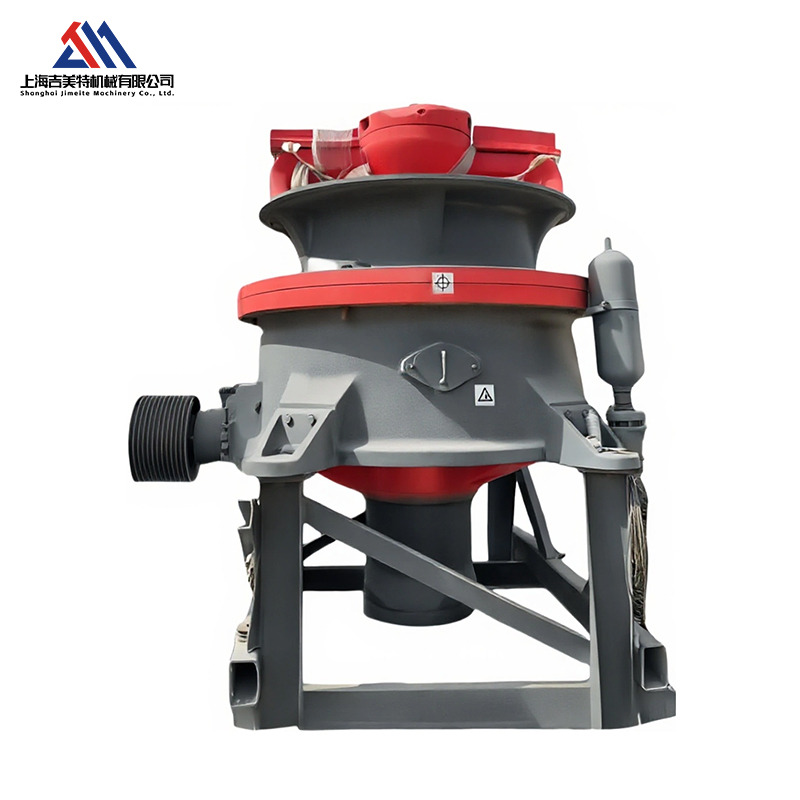

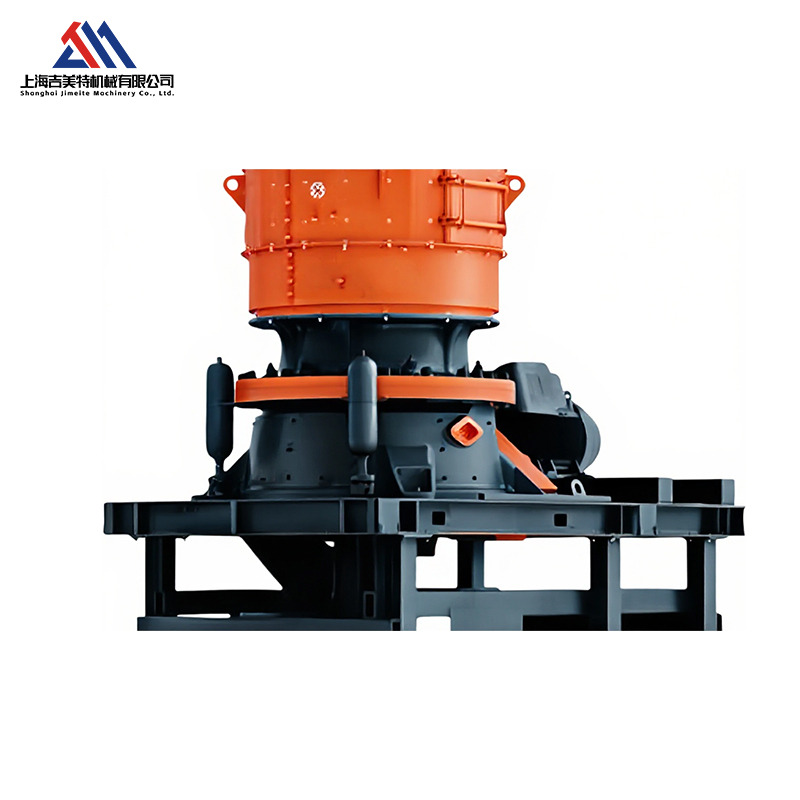

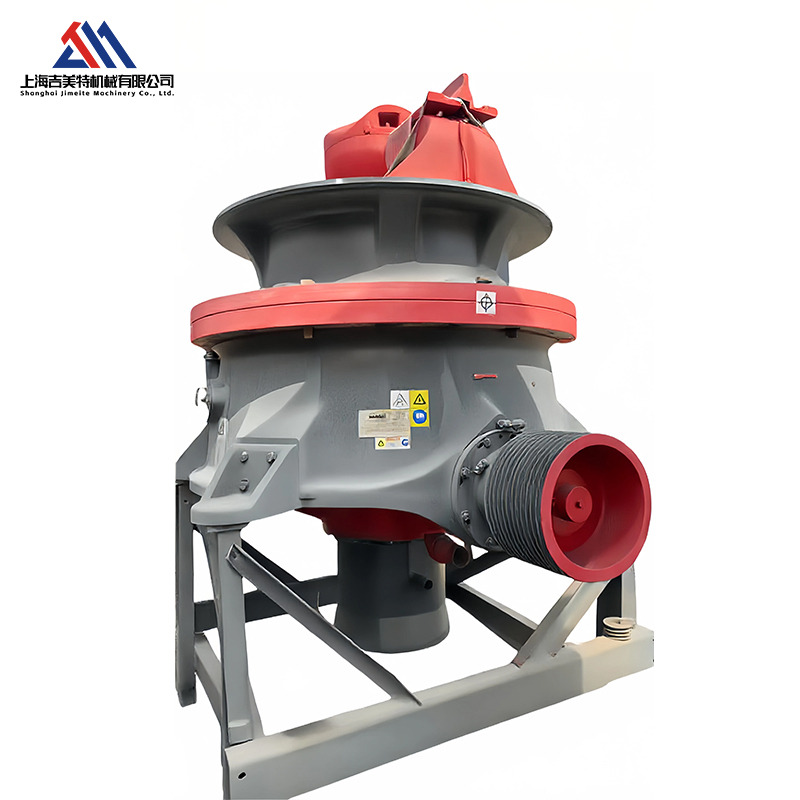

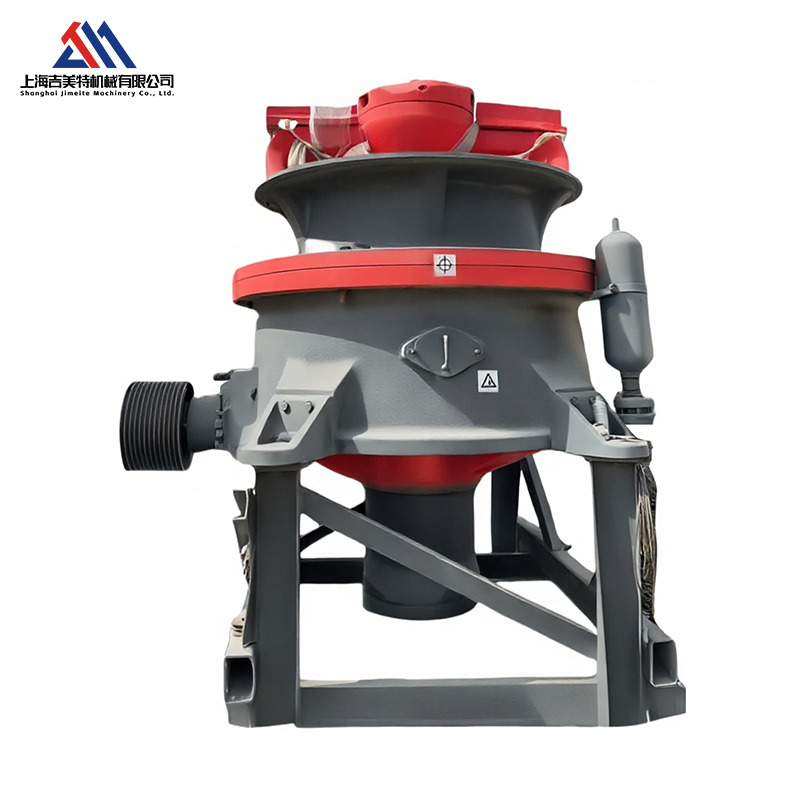

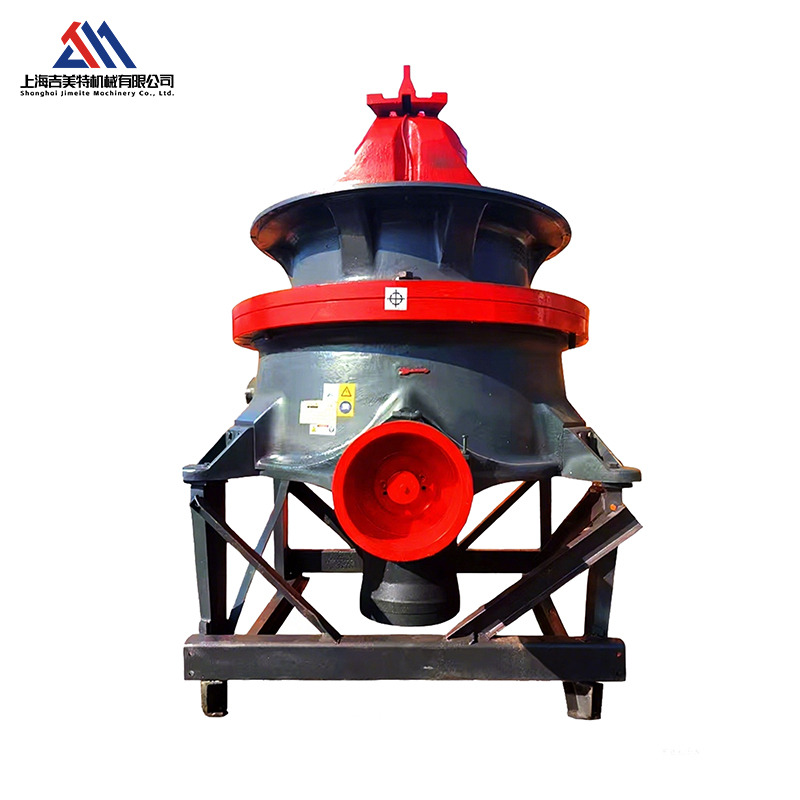

The CHD660 is a large hydraulic cone crusher specifically designed for high-output crushing applications. Utilizing advanced hydraulic technology and layered crushing principles, this model features robust processing capacity, stable operation, and easy maintenance, making it ideal for large-scale mining operations and aggregate production lines. Main Applications: Medium/fine crushing cone crushers suitable for secondary, tertiary, or quaternary crushing processes, engineered for high productivity, stability, and cost efficiency.
Mining: Medium/fine crushing of gold, copper, and iron ores (feed size ≤275mm, output 8-48mm). Aggregate Production: High-quality manufactured sand from granite and basalt (cube ratio ≥85%). Industrial Minerals: Ultra-fine crushing of quartz and feldspar (with fine-chamber liners).
Efficient Layered Crushing: Optimized chamber design with high eccentricity achieves rock compression crushing (layering principle), enhancing production capacity and improving particle shape. High breakage ratio design enables single-unit replacement of multi-stage crushing systems.
Intelligent Control System: Adaptive adjustment: Automatically adjusts discharge ports through real-time monitoring of spindle position, power, and pressure to maintain optimal crushing conditions. Overload protection: Hydraulic system instantly discharges non-crushable materials (e.g., metal impurities) to prevent equipment damage. Remote monitoring: Supports data networking for fault prediction and production optimization.
Robust Structure and Long Life: Monolithic cast frame eliminates welding stress points, offering enhanced fatigue resistance and over 30% longer service life. Wear-resistant components: Heat-treated manganese steel liners extend service life by 25%-40% (depending on material hardness). Top Hydraulic Locking: Enables quick replacement of liners, reducing maintenance time by 50%.
Low Operating Cost Design High-efficiency Motor: Reduces energy consumption by 15%, matching high crushing efficiency. Modular Components: Standardized designs for bearings and seals, lowering spare parts inventory costs. Easy Maintenance: All operations can be performed from the top without dismantling the main equipment.
(1) Large-capacity design to meet high-output demands
(2) Heavy-duty structure ensuring long-term stable operation
(3) Intelligent hydraulic adjustment with user-friendly operation
(4) Convenient maintenance to reduce operational costs
| Parameter Category | Specification |
|---|---|
| Model | CH660 Cone Crusher |
| Weight | Approx. 25,000 kg (55,115 lb) |
| Max Feed Size | 275 mm (10.8 inches) |
| Discharge Setting Range (CSS) | 11 - 51 mm |
| Motor Power | 315 kW (422 hp) |
| Throughput Capacity | 250 - 600 tonnes/hour |
| Chamber Type Options | EC / C / MC / M, etc. (8 options available) |
| Hydraulic System | Hydraulic Adjustment + Imping Iron Protection |
| Control System | Optional ASRI Automation System |
| Suitable Materials | Granite / Basalt / Iron Ore and other hard rock |
