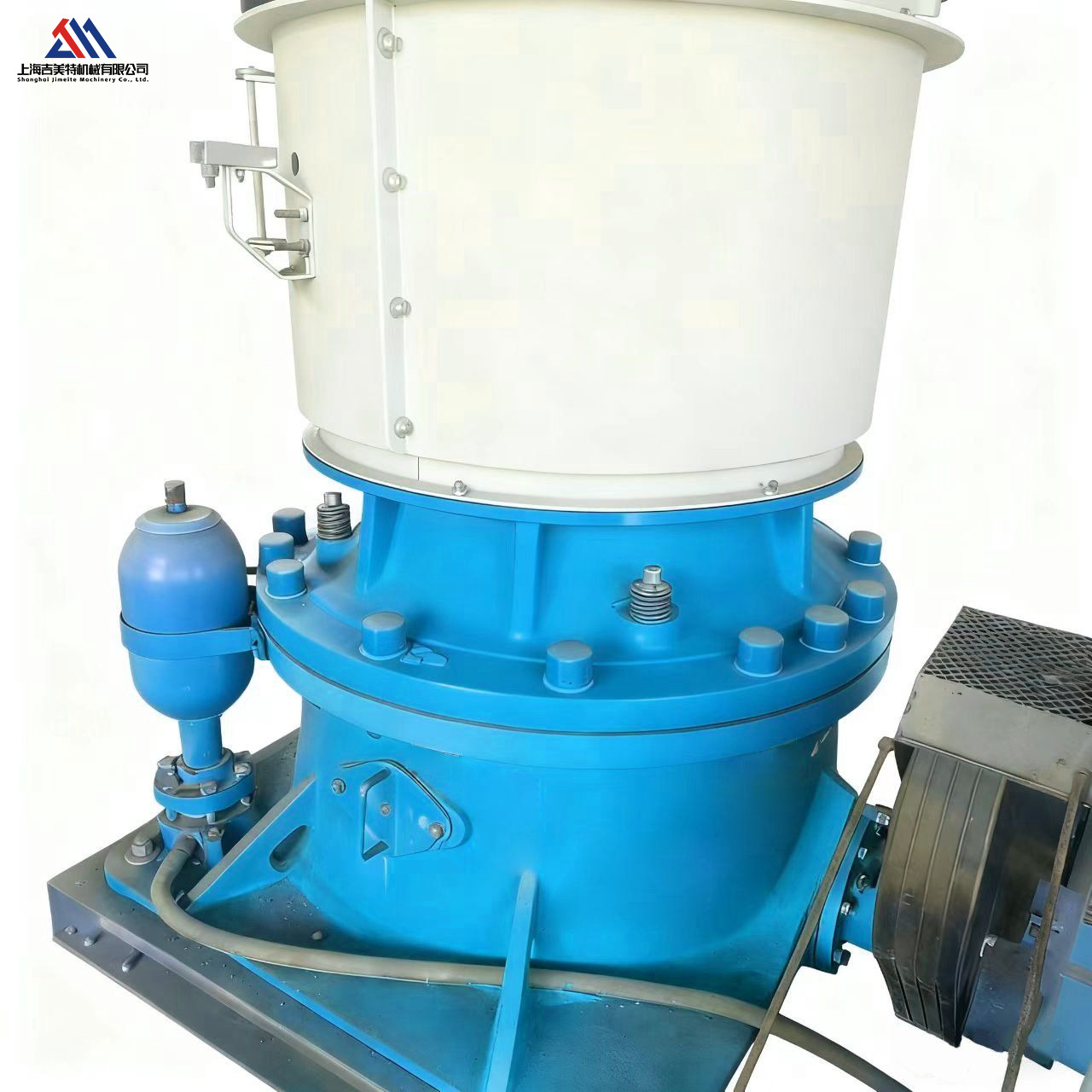

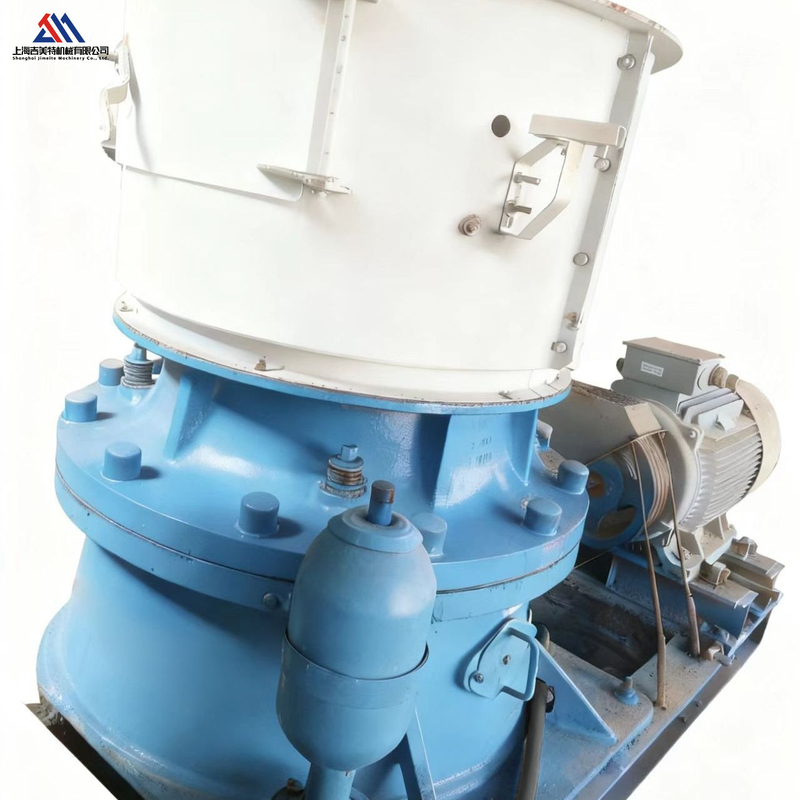

The CHD420 is a highly classic and widely applicable medium-sized high-performance cone crusher, with its compact structure, reliable performance and high cost-effectiveness, is favored as the preferred equipment for many small and medium-sized sand and gravel production lines as well as secondary crushing in mines.
Small and medium-sized sand and gravel plants: As the core medium and fine crushing equipment, they produce high-quality aggregates of 5-20mm specifications required for producing commercial concrete and asphalt mixtures.
Secondary crushing in mining: In the beneficiation process, the primary crushed products are crushed to a particle size more suitable for grinding.
Engineering support projects: Provide comprehensive stone crushing solutions for specific projects such as highways, railways, and construction projects.
(2)Flexible cavity selection: Just like the larger models like CH430, it offers a wide range of cavity libraries, allowing for precise matching of different production needs.
(3)Convenience: The rack can be hydraulically opened. All major maintenance tasks (such as replacing the lining) can be safely carried out from the top.
(4)Optional ASRi™ Automation: Supports optional ASRi system, enabling automated operation, iron protection and wear compensation for the liners.
(1)It is a medium-sized heavy-duty cone crusher that achieves an outstanding balance among performance, size and cost. It is highly suitable for sandstone or mineral processing projects with medium production capacity (such as 100-250 tons per hour), and is one of the reliable core equipment for building efficient and stable crushing production lines.
(2)It is mainly used in the secondary, tertiary or fine-grained stages. It further breaks down the medium-sized stone materials (usually ≤ 160mm) produced by primary crushing equipment such as jaw crushers, into finer-grained and more uniform finished aggregates or mineral fines.
| Parameter Category | Specification |
|---|---|
| Model | CHD420 Cone Crusher |
| Weight | Approx. 12,500-14,500 kg |
| Max Feed Size | ≤185mm |
| Motor Power | 110 kW (150 hp) |
| Throughput Capacity | 60-300 tonnes/hour |
| Chamber Type Options | EC / C / MC / M, etc. (8 options available) |
| Hydraulic System | Hydraulic Adjustment + Imping Iron Protection |
| Control System | Optional ASRI Automation System |
| Suitable Materials | Granite / Basalt / Iron Ore and other hard rock |
The CHD420 is a highly classic and widely applicable medium-sized high-performance cone crusher, with its compact structure, reliable performance and high cost-effectiveness, is favored as the preferred equipment for many small and medium-sized sand and gravel production lines as well as secondary crushing in mines.
Small and medium-sized sand and gravel plants: As the core medium and fine crushing equipment, they produce high-quality aggregates of 5-20mm specifications required for producing commercial concrete and asphalt mixtures.
Secondary crushing in mining: In the beneficiation process, the primary crushed products are crushed to a particle size more suitable for grinding.
Engineering support projects: Provide comprehensive stone crushing solutions for specific projects such as highways, railways, and construction projects.
(2)Flexible cavity selection: Just like the larger models like CH430, it offers a wide range of cavity libraries, allowing for precise matching of different production needs.
(3)Convenience: The rack can be hydraulically opened. All major maintenance tasks (such as replacing the lining) can be safely carried out from the top.
(4)Optional ASRi™ Automation: Supports optional ASRi system, enabling automated operation, iron protection and wear compensation for the liners.
(1)It is a medium-sized heavy-duty cone crusher that achieves an outstanding balance among performance, size and cost. It is highly suitable for sandstone or mineral processing projects with medium production capacity (such as 100-250 tons per hour), and is one of the reliable core equipment for building efficient and stable crushing production lines.
(2)It is mainly used in the secondary, tertiary or fine-grained stages. It further breaks down the medium-sized stone materials (usually ≤ 160mm) produced by primary crushing equipment such as jaw crushers, into finer-grained and more uniform finished aggregates or mineral fines.
| Parameter Category | Specification |
|---|---|
| Model | CHD420 Cone Crusher |
| Weight | Approx. 12,500-14,500 kg |
| Max Feed Size | ≤185mm |
| Motor Power | 110 kW (150 hp) |
| Throughput Capacity | 60-300 tonnes/hour |
| Chamber Type Options | EC / C / MC / M, etc. (8 options available) |
| Hydraulic System | Hydraulic Adjustment + Imping Iron Protection |
| Control System | Optional ASRI Automation System |
| Suitable Materials | Granite / Basalt / Iron Ore and other hard rock |
