| Quantity: | |
|---|---|

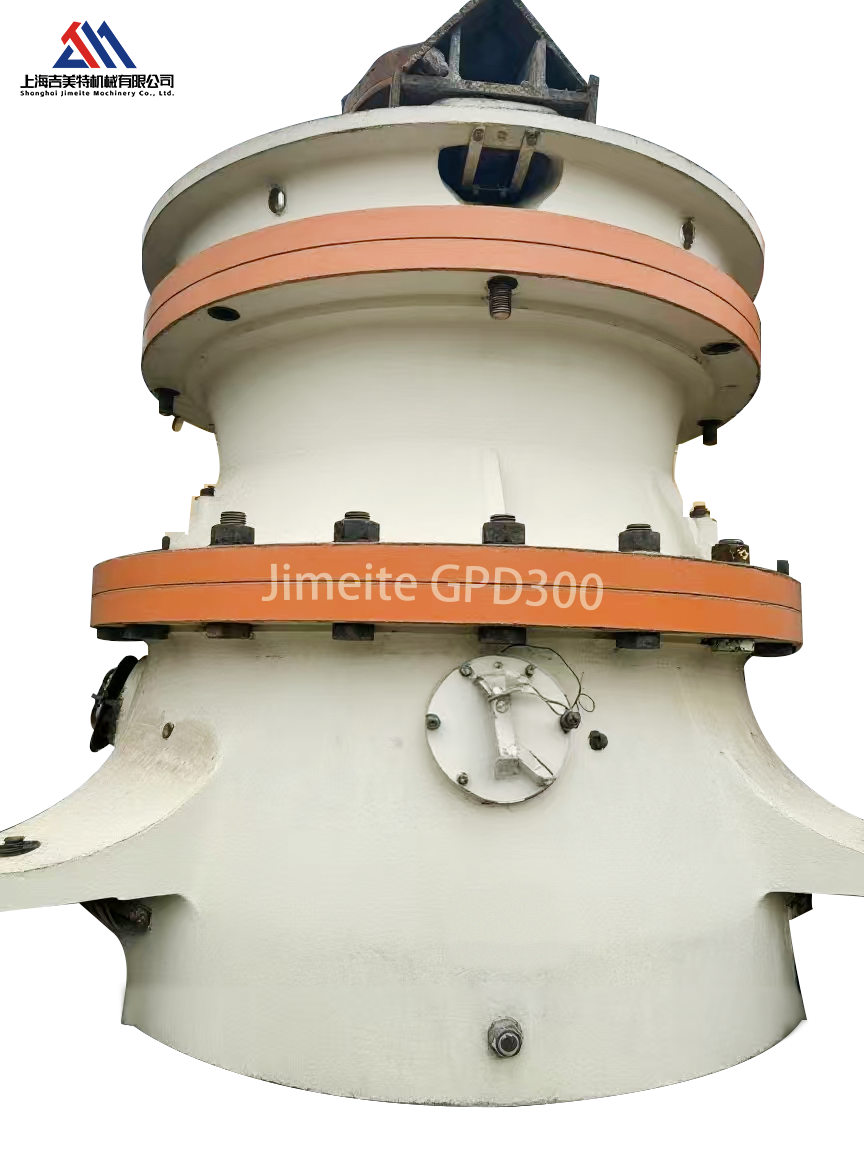

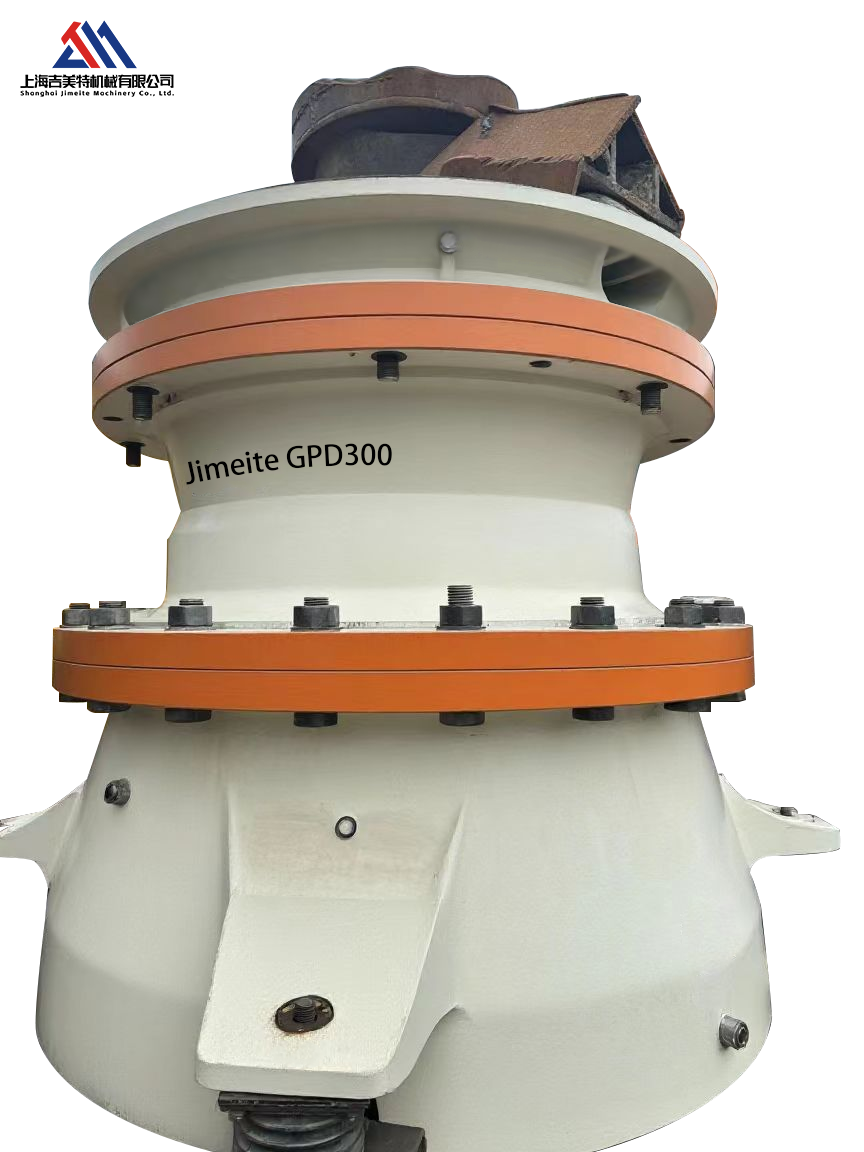

The GPD300 Cone Crusher is a high-performance, medium-sized model in the GP series of cone crushers. The GP series represents the top technology of Metso in the field of single-cylinder hydraulic cone crushers, known for its compact structure, high efficiency and ease of maintenance. The GP300 is particularly suitable for secondary, tertiary or fine crushing operations, and is an excellent tool for producing high-quality aggregates and manufactured sand.
Secondary/tertiary crushing in aggregate production: On hard rock production lines such as granite and basalt, it receives the output from jaw crushers and undergoes further crushing.
High-quality manufactured sand production: By choosing the fine cavity type, the GP300 can be used as an excellent sand-making machine to produce manufactured sand with good gradation.
Mining crushing operation: Used for the fine crushing of metal ores to enhance the grinding efficiency.
(1)Compact single-cylinder hydraulic design:
The GP series adopts a single-cylinder hydraulic system that integrates discharge port adjustment, cavity cleaning, and iron removal protection functions. All hydraulic functions are accomplished through a main hydraulic cylinder located at the bottom. The structure is extremely compact and simplified, reducing potential leakage points and ensuring high reliability.
(2)High-efficiency layering crushing capability:
The optimized crushing cavity design (available in multiple standard configurations in the GP series) combined with a reasonable eccentricity and swing speed achieves efficient layer-by-layer crushing, enabling the production of high-quality, uniform-sized products, making it particularly suitable for aggregate production.
(3)Intelligent automatic control system (optional):
It can be equipped with the IC™ series automatic control device of Meidou, achieving:
ASRi™ (Adaptive Discharge Port Adjustment): Automatically compensates for wear on the liner, maintains a constant discharge port setting, thereby stabilizing product particle size, maximizing output and extending liner lifespan.
Real-time monitoring and protection: Continuously monitor key parameters such as pressure, power, and temperature.
(1)Convenient "Top Service" design:
This is a major feature of the GP series. All routine maintenance tasks, such as replacing liners and inspecting wear, can be carried out from the top of the equipment. Operators do not need to perform high-risk operations below or around the equipment, ensuring high safety and short maintenance time.
(2)Optimized wear-resistant component design:
The moving cone liner and the fixed cone liner are made of high-quality wear-resistant materials and come in various cavity types (such as medium-coarse, medium-fine, and extra-fine) to meet different feeding and product requirements.
(3)With limited space and installation costs, provide outstanding crushing performance, flexible product control and convenient maintenance experience.
(4)Within the framework of a single-cylinder cone crusher, the particle shape and efficiency comparable to those of multi-cylinder cone crushers have been achieved, while maintaining a simple structure and cost advantage.
Parameter | Specification Value |
Feed Opening Size | 1,500*1,070 mm |
Max Feed Size | ≤250mm |
Capacity | 150-500t/h |
Motor Power | 250kw |
Discharge Adjustment | 8-40 mm |
Eccentric Shaft Speed | ≈600-750 rpm |
Machine Weight (Main) | ≈ 16,000 - 19,000 kg |
