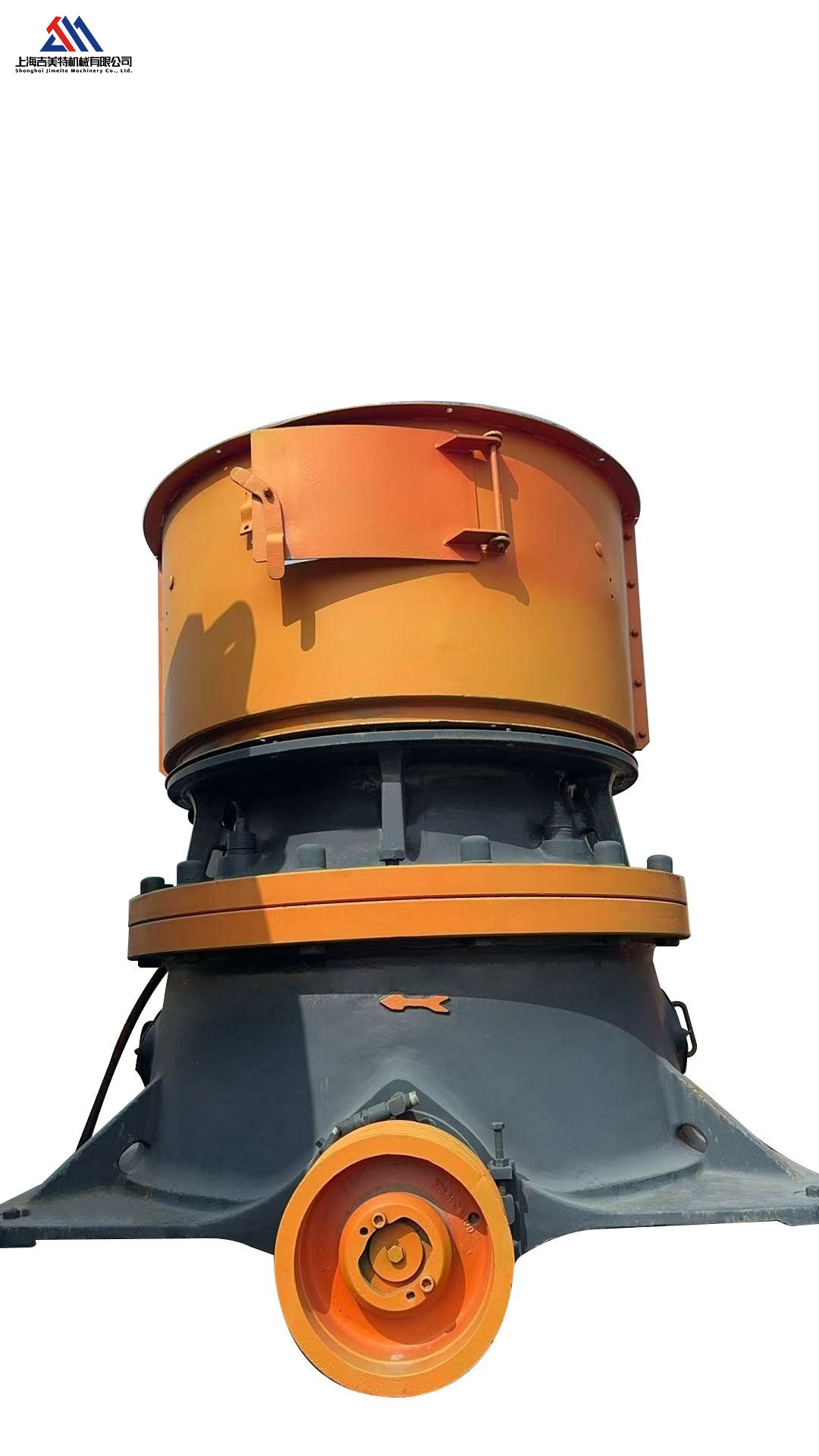

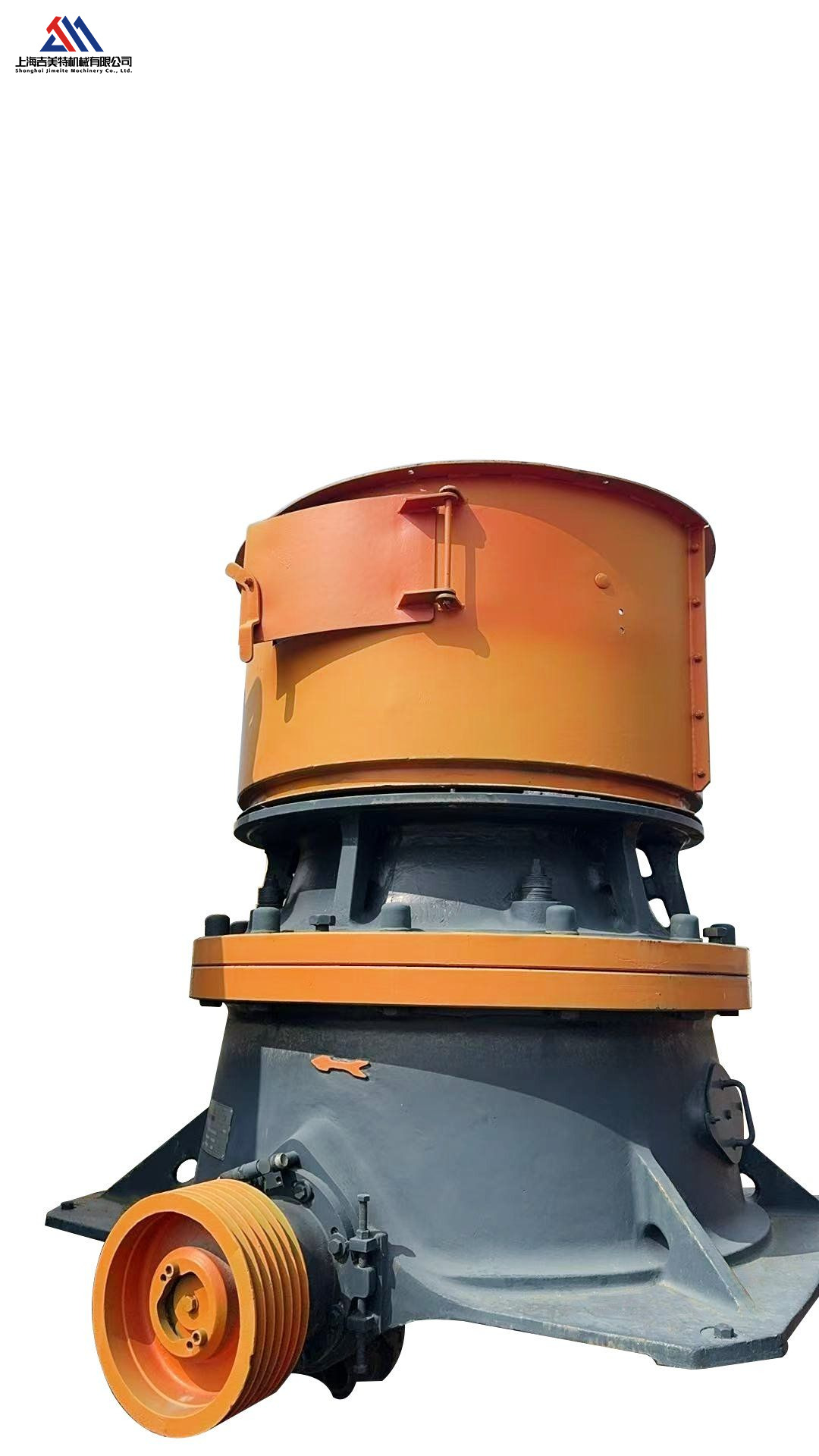

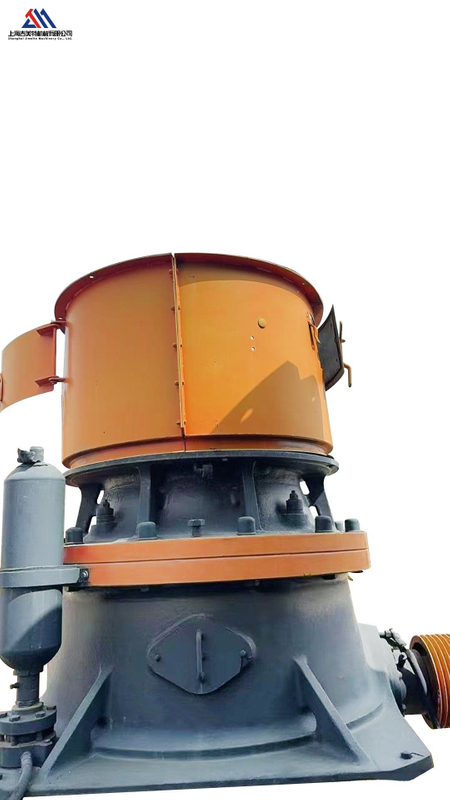

The CHD430 is a high-performance heavy-duty cone crusher, mainly used in the secondary, tertiary or fine crushing stages. Its function is to further break down the medium-sized stone materials that have been processed by the jaw crusher (the primary crushing stage) into smaller products with uniform particle size and good particle shape. It is a key equipment for producing high-quality aggregates and mineral fines.
Sand and gravel production: In various-sized sand and gravel plants, the core medium or fine crushing equipment produces high-quality aggregates (such as 5-15mm, 10-25mm, etc.) for concrete and asphalt.
Mining processing: In the beneficiation processes of non-ferrous metals, ferrous metals, and industrial minerals, it is used for medium and fine crushing operations to provide suitable feed particle sizes for grinding.
Construction engineering and infrastructure development: Provide a stable supply of stone materials for projects such as roads, railways, and dams.
Heavy-duty structure: Utilizing sturdy frame and main shaft designs, it can withstand high-load impacts and ensure long-term stability when crushing hard materials.
ASRi™ Intelligent Automation System (standard or optional): This is the "brain" of the CH430. This system can monitor the load of the crusher (main shaft pressure) in real time and automatically adjust the discharge opening (CSS) to maintain the preset optimal working point. This brings three core advantages:
Constant production capacity and product particle size: Mitigating the impact of wear on the liners, maintaining stable output.
Iron protection: Automatically releases when encountering non-breakable objects (such as iron blocks), protecting the equipment.
Optimize efficiency: Always operate within the high-efficiency range, reducing energy consumption and wear on the liners.
Diverse crushing cavity types: We offer a variety of cavity types ranging from coarse crushing (C/EC cavity) to ultra-fine crushing (F/EF cavity). Users can precisely match the cavity type according to the feed particle size, target product particle size and production capacity requirements, with extremely high flexibility.
Maintaining convenience: The rack assembly can be hydraulically raised. All maintenance tasks (such as replacing the lining) can be carried out from the top, ensuring high safety and reducing downtime.
(1)Constant production capacity and product particle size: Mitigates the impact of wear on the liner, maintaining stable output.
(2)Over-iron protection: Automatically releases when encountering non-pulverizable objects (such as iron blocks), protecting the equipment.
(3)Optimize efficiency: Always operate within the high-efficiency range, reducing energy consumption and wear on the wear plates.
| Parameter Category | Specification |
|---|---|
| Model | CHD430 Cone Crusher |
| Weight | Approx. 23,000-25,000kg |
| Max Feed Size | ≤235mm |
| Motor Power | 160kW (200 hp) |
| Throughput Capacity | 120-400tonnes/hour |
| Chamber Type Options | EC / C / MC / M, etc. (8 options available) |
| Hydraulic System | Hydraulic Adjustment + Imping Iron Protection |
| Control System | Optional ASRI Automation System |
| Suitable Materials | Granite / Basalt / Iron Ore and other h |
