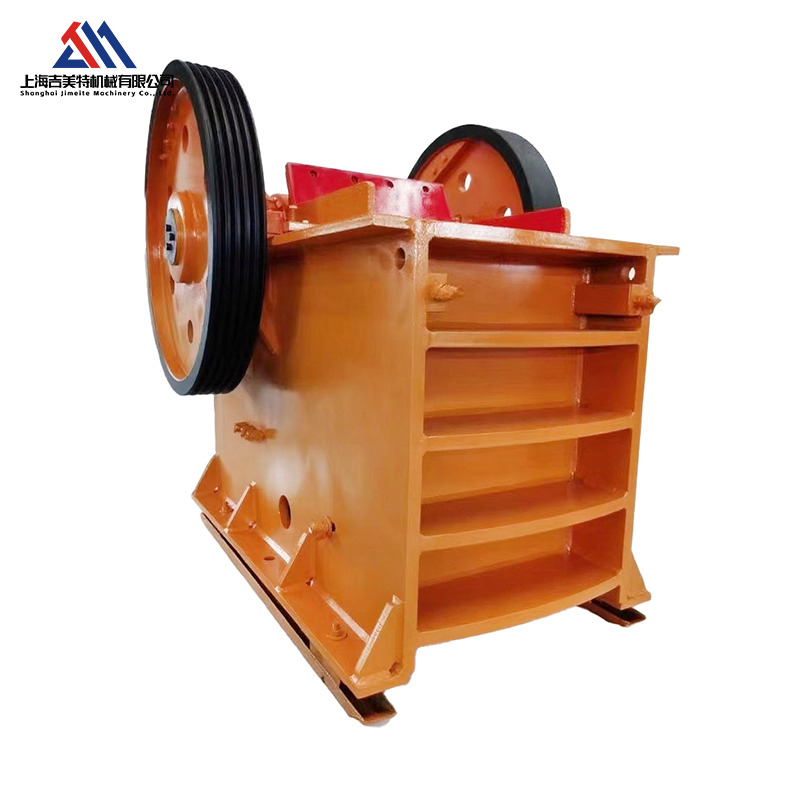

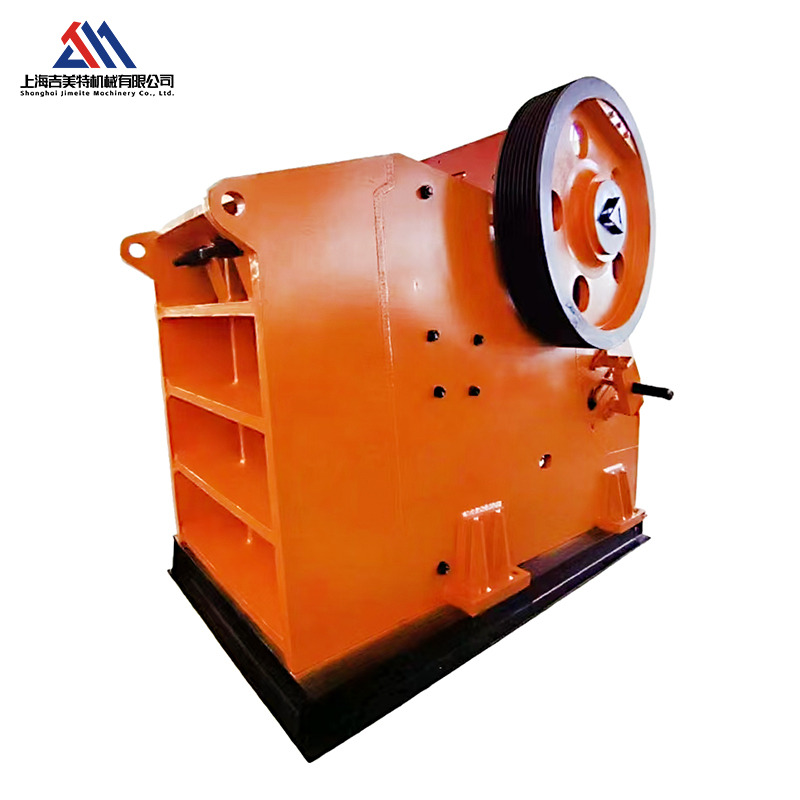

The PE-600×900 is a standard jaw crusher from China, featuring a simple swing structure and mechanical spring overload protection design. It is suitable for primary crushing of medium-low hardness materials (compressive strength ≤320MPa). With a feed opening size of 600×900mm and maximum processing capacity of 180 t/h, it serves as the primary coarse crushing equipment for small and medium-sized sand and gravel plants and mines.
-Sand and gravel aggregate production lines: Crushing medium-hard materials like limestone and bluestone to produce roadbed crushed stone (30-80mm). -Small metal mines: Primary crushing of low-abrasiveness ores such as iron ore and manganese ore. -Construction waste processing: Crushing concrete blocks and brick tiles to regenerate aggregates. -Laboratory pilot tests: Used for mineral coarse crushing experiments (scale-reduced model PE-60×100).
(1) High-strength frame: Welded steel structure with reinforced ribs at critical load points, offering superior deformation resistance than cast frames.
(2) Dual-wedge discharge adjustment: Manual mechanical adjustment of discharge opening (range 75-200mm), precision ±5mm, requires machine shutdown.
(3) Deep V crushing chamber: 22° meshing angle optimized material drop trajectory, reducing clogging risks (especially for wet sticky materials).
(4) Heavy-duty eccentric shaft: Forged from 40Cr alloy steel with quenched treatment, bearing surface hardened to HRC55-60.
(5) Spring overload protection: 4 sets of helical springs absorb impact loads, protecting core components when overloading.
Easy maintenance: Jaw plates bolted for quick replacement within 2 hours by a single operator. Energy consumption economy: motor power is 75kW, power consumption per ton ≤1.2 kWh/t (limestone working condition).
Strong adaptability: basic size is compatible with old PE-600×900, no need to rebuild the foundation for renovation.
Parameter | Specification Value | Operating Conditions / Notes |
Feed Opening Size | 600 × 900 mm (24 × 35 in) | Width × Length |
Max Feed Size | ≤ 480 mm (19") | 0.8 × Feed opening width of the feed inlet |
Capacity | 50 - 180 t/h | Discharge opening=100mm, limestone |
Motor Power | 75 kW (100 HP) | Y280M-6 Three-phase asynchronous motor |
Discharge Opening Range | 75 - 200 mm (3" - 8") | Mechanical manual adjustment |
Eccentric Shaft Speed | 250 rpm | Jaw swing frequency≈4.2 times/second |
Machine Weight (Main Body) | ≈ 17,000 kg (37,500 lbs) | Excludes motor & starter cabinet |
Dimensions (L × W × H) | 2,380 × 1,870 × 1,950 mm (94 × 74 × 77 in) | Includes pulley protective cover |
